Examination Paper Repository System Sequence UML Diagram

January 31 2018

Posted By: freeproject
Comments: 0

Posted By freeproject on January 31, 2018

This is the UML sequence diagram of Examination Paper Repository System which shows the interaction between the objects of Room, Subject, Class, Student, Exam. The instance of class objects involved in this UML Sequence Diagram of Examination Paper Repository System are as follows:

Room Object
Subject Object
Class Object
Student Object
Exam Object

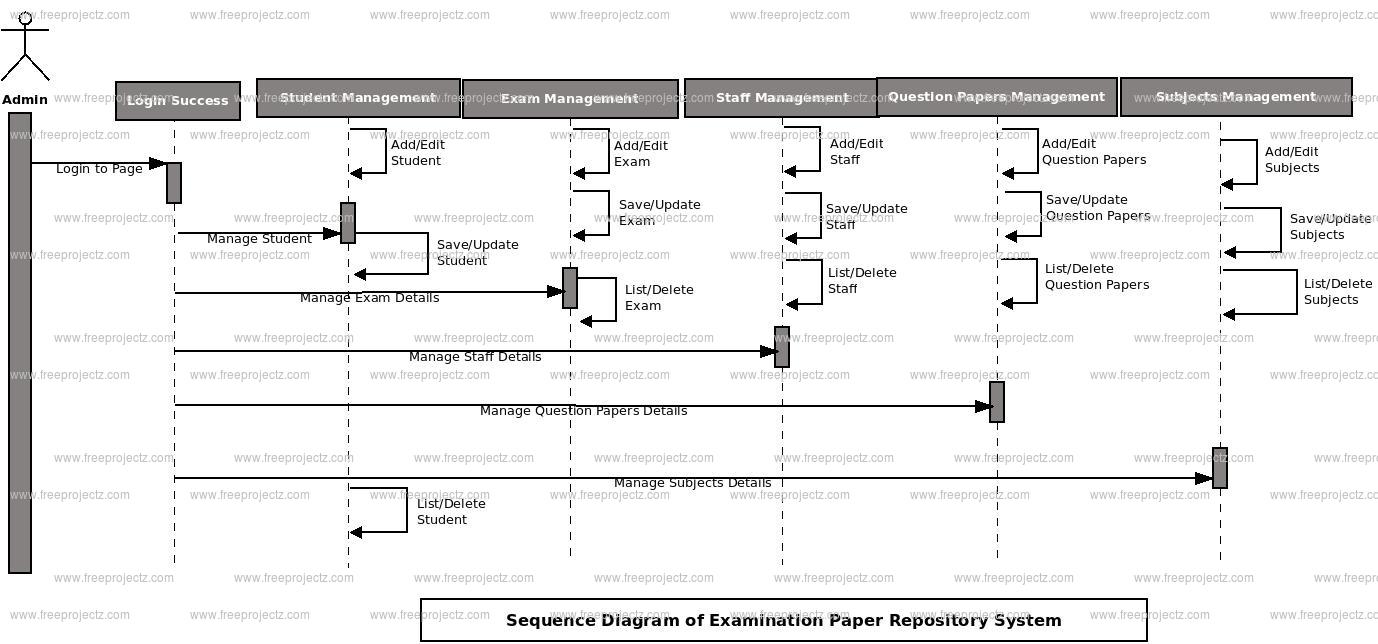

Login Sequence Diagram of Examination Paper Repository System:

This is the Login Sequence Diagram of Examination Paper Repository System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on Class, Room, Subject, Exam, Student. All the pages such as Subject, Exam, Student are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Examination Paper Repository System. The various objects in the Exam, Class, Room, Subject, and Student page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.

This is the UML sequence diagram of Examination Paper Repository System which shows the interaction between the objects of Room, Subject, Class, Student, Exam. The instance of class objects involved in this UML Sequence Diagram of Examination Paper Repository System are as follows:

Room Object
Subject Object
Class Object
Student Object
Exam Object
