Laboratory Inventory System Activity Diagram

Posted By freeproject on March 13, 2018

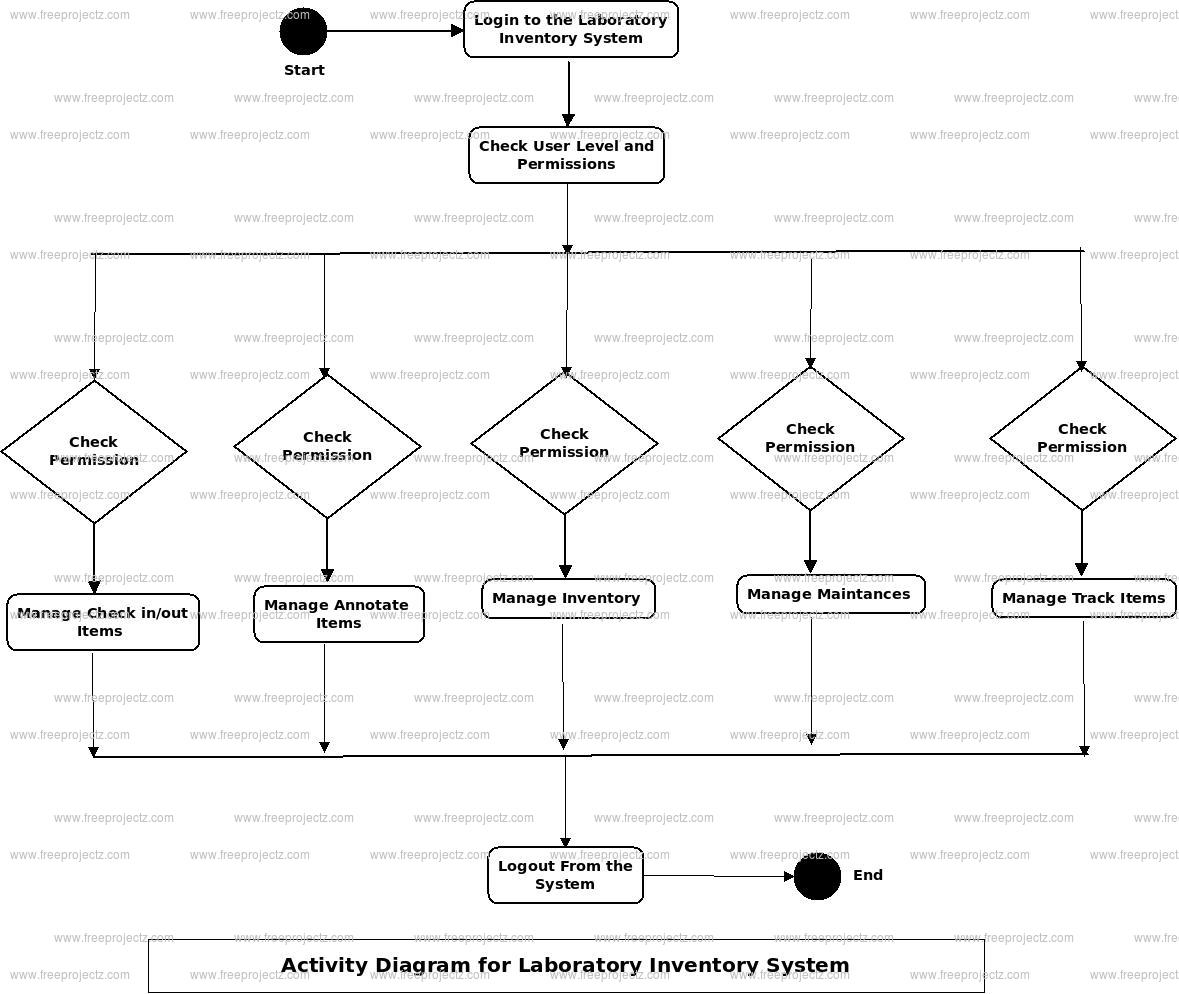

This is the Activity UML diagram of Laboratory Inventory System which shows the flows between the activity of Annotate Items, Check in/out Items, Inventory Valuation, Track Items, Record Information. The main activity involved in this UML Activity Diagram of Laboratory Inventory System are as follows:

  • Annotate Items Activity
  • Check in/out Items Activity
  • Inventory Valuation Activity
  • Track Items Activity
  • Record Information Activity

Features of the Activity UML diagram of Laboratory Inventory System

  • Admin User can search Annotate Items, view description of a selected Annotate Items, add Annotate Items, update Annotate Items and delete Annotate Items.
  • Its shows the activity flow of editing, adding and updating of Check in/out Items
  • User will be able to search and generate report of Inventory Valuation, Track Items, Record Information
  • All objects such as ( Annotate Items, Check in/out Items, Record Information) are interlinked
  • Its shows the full description and flow of Annotate Items, Track Items, Record Information, Inventory Valuation, Check in/out Items
