Parking System Component Diagram

Posted By freeproject on February 8, 2018

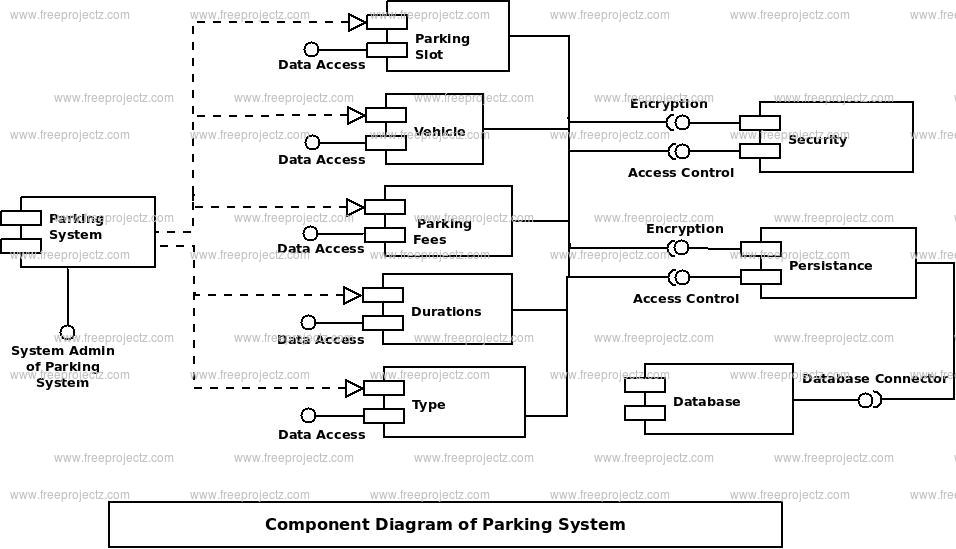

This is a Component diagram of Parking System which shows components, provided and required interfaces, ports, and relationships between the Duration, Type, Customers, Parking Fee and Parking Slot. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Parking System UML component diagram, describes the organization and wiring of the physical components in a system.

Components of UML Component Diagram of Parking System:

  • Duration Component
  • Type Component
  • Customers Component
  • Parking Fee Component
  • Parking Slot Component

Featues of Parking System Component Diagram:

  • You can show the models the components of Parking System.
  • Model the database schema of Parking System
  • Model the executables of an application of Parking System
  • Model the system's source code of Parking System
