School Management System Class Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on August 2, 2017

School Management System Class Diagram describes the structure of a School Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the School Management System are Schools, Students, Classes, Teachers, Cources, Registrations.

Classes of School Management System Class Diagram:

  • Schools Class : Manage all the operations of Schools
  • Students Class : Manage all the operations of Students
  • Classes Class : Manage all the operations of Classes
  • Teachers Class : Manage all the operations of Teachers
  • Cources Class : Manage all the operations of Cources
  • Registrations Class : Manage all the operations of Registrations

Classes and their attributes of School Management System Class Diagram:

  • Schools Attributes : school_id, school_name, school_type, school_description
  • Students Attributes : student_id, student_college_id, student_name, student_mobile, student_email, student_username, student_password, student_address
  • Classes Attributes : class_id, class_student_id, class_name, class_room, class_type, class_description
  • Teachers Attributes : teacher_id, teacher_college_id, teacher_name, teacher_mobile, teacher_email, teacher_username, teacher_password, teacher_address
  • Cources Attributes : course_id, course_student_id, course_registration, course_name, course_type, course_year, course_description
  • Registrations Attributes : registration_id, registration_student_id, registration_course_id, registration_name, registration_type, registration_number, registration_date, registration_description

Classes and their methods of School Management System Class Diagram:

  • Schools Methods : addSchools(), editSchools(), deleteSchools(), updateSchools(), saveSchools(), searchSchools()
  • Students Methods : addStudents(), editStudents(), deleteStudents(), updateStudents(), saveStudents(), searchStudents()
  • Classes Methods : addClasses(), editClasses(), deleteClasses(), updateClasses(), saveClasses(), searchClasses()
  • Teachers Methods : addTeachers(), editTeachers(), deleteTeachers(), updateTeachers(), saveTeachers(), searchTeachers()
  • Cources Methods : addCources(), editCources(), deleteCources(), updateCources(), saveCources(), searchCources()
  • Registrations Methods : addRegistrations(), editRegistrations(), deleteRegistrations(), updateRegistrations(), saveRegistrations(), searchRegistrations()

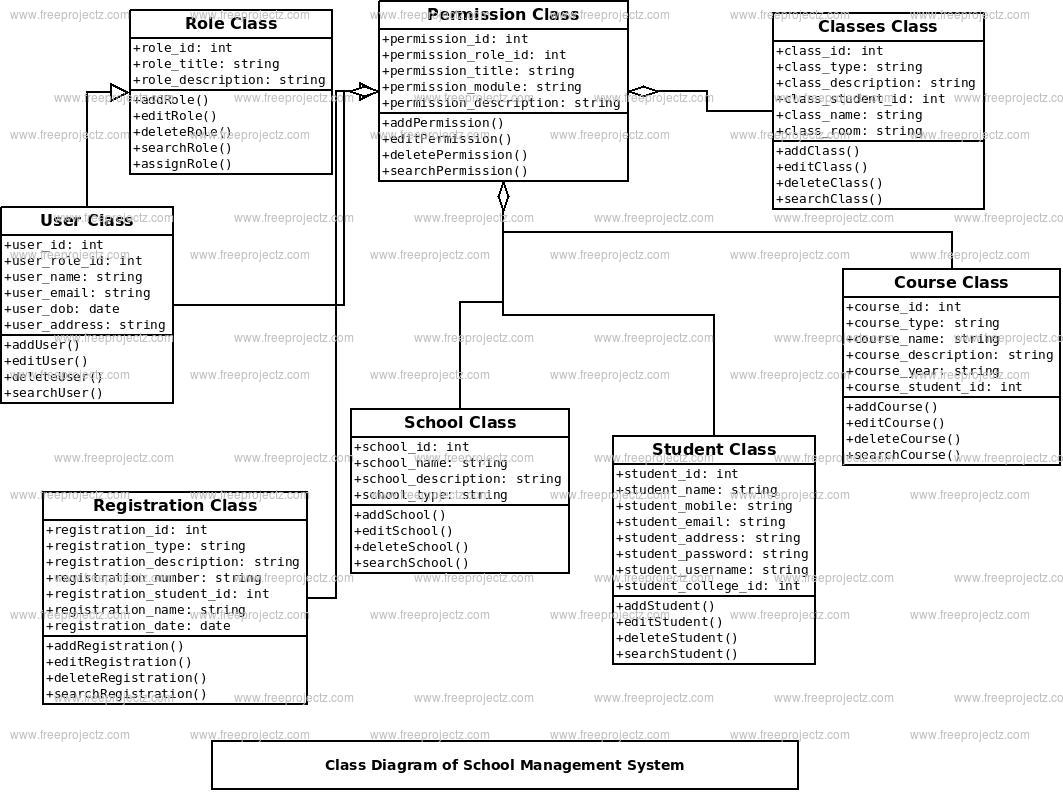

Class Diagram of School Management System :

Class Diagram Image:
School Management System Class Diagram
