Student Feedback System Use Case Diagram

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Student Feeback System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Student Feeback System. The main actors of Student Feeback System in this Use Case Diagram are: Super Admin, System User, Teacher, Student, who perform the different type of use cases such as Manage Student, Manage Feedback, Manage Class, Manage Feedback Type, Manage Faculty, Manage Teacher, Manage Subject, Manage Users and Full Student Feeback System Operations. Major elements of the UML use case diagram of Student Feeback System are shown on the picture below.

The relationships between and among the actors and the use cases of Student Feeback System:

  • Super Admin Entity : Use cases of Super Admin are Manage Student, Manage Feedback, Manage Class, Manage Feedback Type, Manage Faculty, Manage Teacher, Manage Subject, Manage Users and Full Student Feeback System Operations
  • System User Entity : Use cases of System User are Manage Student, Manage Feedback, Manage Class, Manage Feedback Type, Manage Faculty, Manage Teacher, Manage Subject
  • Teacher Entity : Use cases of Teacher are View Feedback, Search Feedback, View Rankings
  • Student Entity : Use cases of Student are Submit Feedback, Search Teacherrs, Filters Feedback

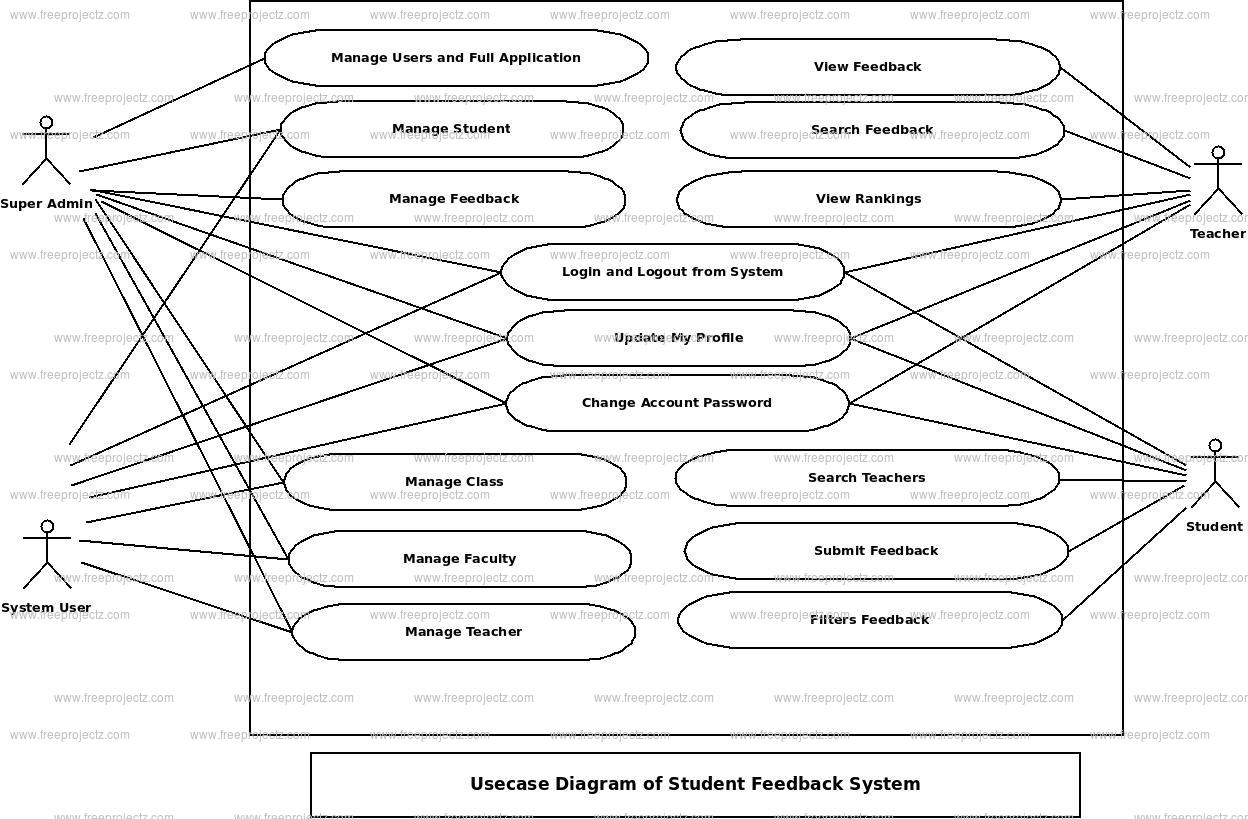

Use Case Diagram of Student Feeback System :
