Car Service Center Management System UML Diagram

Posted By freeproject on March 18, 2018

Car Service Center Management System Activity Diagram

Posted By freeproject on March 13, 2018

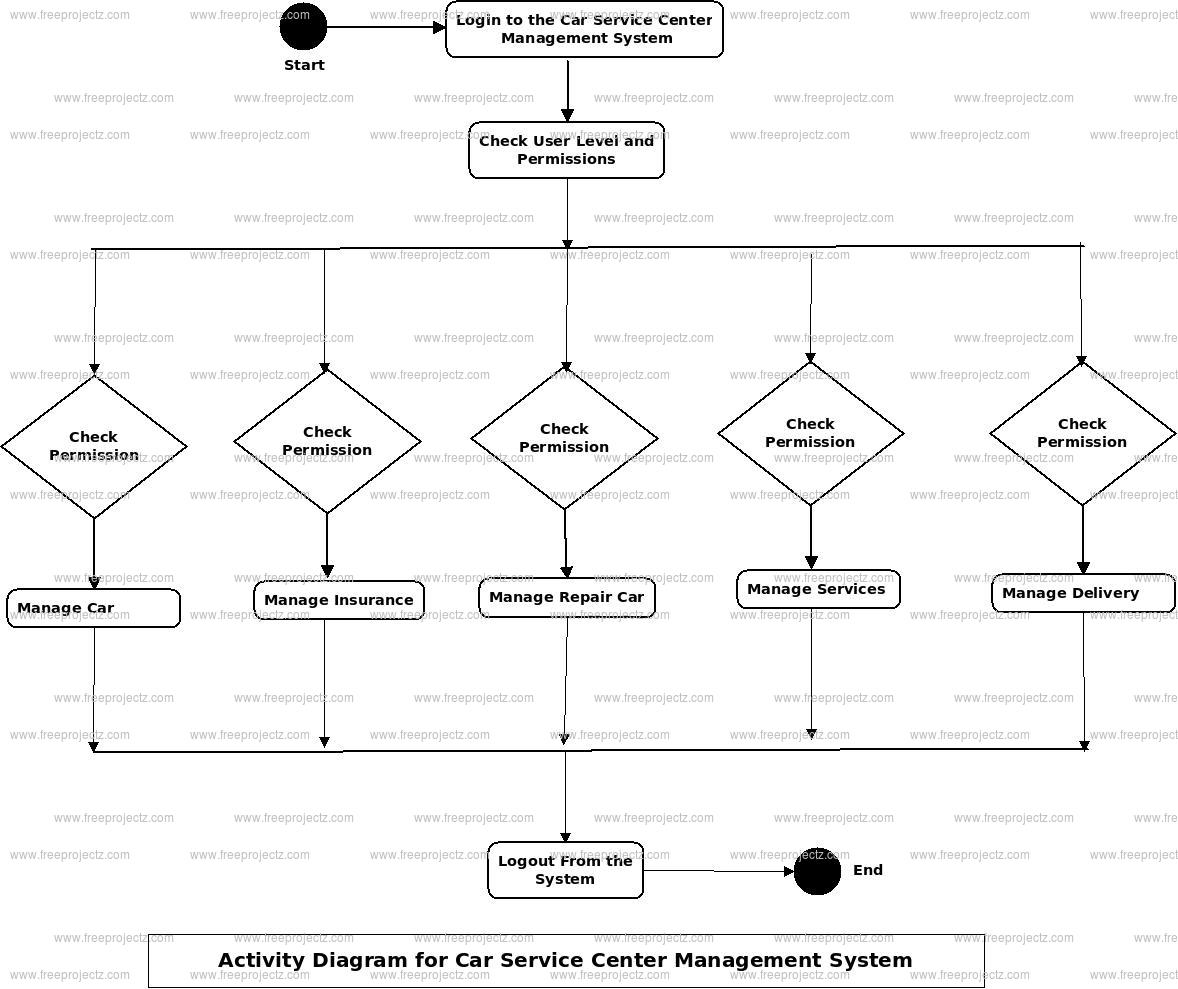

This is the Activity UML diagram of Car Service Center Management System which shows the flows between the activity of Branches center, Repair Car, Insurance, Services Delivery, Car. The main activity involved in this UML Activity Diagram of Car Service Center Management System are as follows:

  • Branches center Activity
  • Repair Car Activity
  • Insurance Activity
  • Services Delivery Activity
  • Car Activity

Features of the Activity UML diagram of Car Service Center Management System

  • Admin User can search Branches center, view description of a selected Branches center, add Branches center, update Branches center and delete Branches center.
  • Its shows the activity flow of editing, adding and updating of Repair Car
  • User will be able to search and generate report of Insurance, Services Delivery, Car
  • All objects such as ( Branches center, Repair Car, Car) are interlinked
  • Its shows the full description and flow of Branches center, Services Delivery, Car, Insurance, Repair Car
Car Service Center Management System Activity Diagram

Car Service Center Management System Class Diagram

Posted By freeproject on August 2, 2017

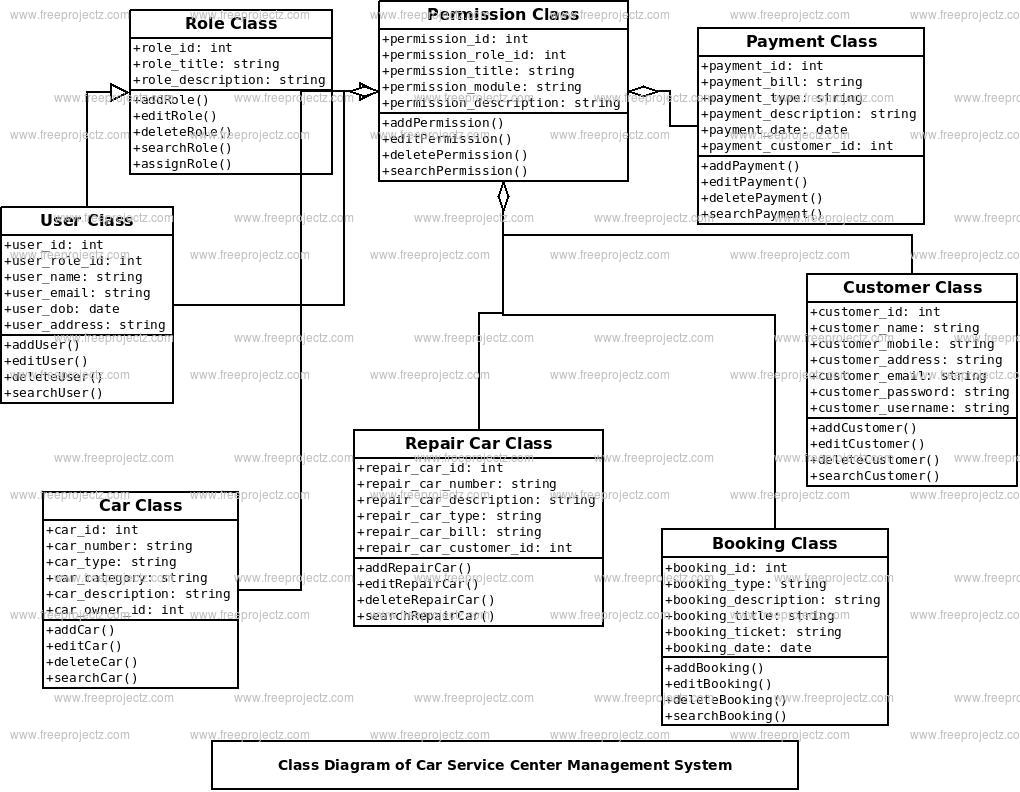

Car Service Center Management System Class Diagram describes the structure of a Car Service Center Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Car Service Center Management System are Car, Booking, Repair Car, Insurance, Customer, Payment.

Classes of Car Service Center Management System Class Diagram:

  • Car Class : Manage all the operations of Car
  • Booking Class : Manage all the operations of Booking
  • Repair Car Class : Manage all the operations of Repair Car
  • Insurance Class : Manage all the operations of Insurance
  • Customer Class : Manage all the operations of Customer
  • Payment Class : Manage all the operations of Payment

Classes and their attributes of Car Service Center Management System Class Diagram:

  • Car Attributes : car_id, car_customer_id, car_number, car_company car_type, car_description
  • Booking Attributes : booking_id, booking_title, booking_type, booking_ticket, booking_date, booking_description
  • Repair Car Attributes : repair_car_id, repair_car_customer_id, repair_car_number, repair_car_bill, repair_car_type, repair_car_description
  • Insurance Attributes : insurance_id, insurance_bike_id, insurance_number, insurance_date, insurance_expiry, insurance_amount, insurance_type, insurance_description
  • Customer Attributes : customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
  • Payment Attributes : payment_id, payment_customer_id, payment_date, payment_bill, payment_type, payment_description

Classes and their methods of Car Service Center Management System Class Diagram:

  • Car Methods : addCar(), editCar(), deleteCar(), updateCar(), saveCar(), searchCar()
  • Booking Methods : addBooking(), editBooking(), deleteBooking(), updateBooking(), saveBooking(), searchBooking()
  • Repair Car Methods : addRepair Car(), editRepair Car(), deleteRepair Car(), updateRepair Car(), saveRepair Car(), searchRepair Car()
  • Insurance Methods : addInsurance(), editInsurance(), deleteInsurance(), updateInsurance(), saveInsurance(), searchInsurance()
  • Customer Methods : addCustomer(), editCustomer(), deleteCustomer(), updateCustomer(), saveCustomer(), searchCustomer()
  • Payment Methods : addPayment(), editPayment(), deletePayment(), updatePayment(), savePayment(), searchPayment()

Class Diagram of Car Service Center Management System :

Class Diagram Image:
Car Service Center Management System Class Diagram

Car Service Center Management System Component Diagram

Posted By freeproject on February 8, 2018

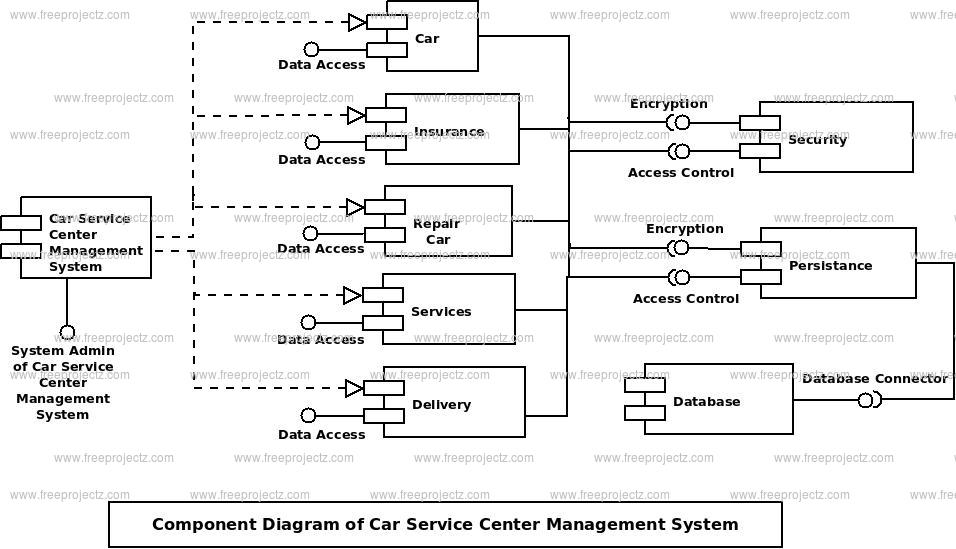

This is a Component diagram of Car Service Center Management System which shows components, provided and required interfaces, ports, and relationships between the Services Delivery, Insurance, Repair Car, Car and Branches center. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Car Service Center Management System UML component diagram, describes the organization and wiring of the physical components in a system.

Components of UML Component Diagram of Car Service Center Management System:

  • Services Delivery Component
  • Insurance Component
  • Repair Car Component
  • Car Component
  • Branches center Component

Featues of Car Service Center Management System Component Diagram:

  • You can show the models the components of Car Service Center Management System.
  • Model the database schema of Car Service Center Management System
  • Model the executables of an application of Car Service Center Management System
  • Model the system's source code of Car Service Center Management System
Component Diagram:

Car Service Center Management System Dataflow Diagram

Posted By namita on June 29, 2017
Car Service Center Management System Data flow diagram is often used as a preliminary step to create an overview of the Car without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Car process. It contains all of the userflow and their entities such all the flow of Booking, Repair Car, Insurance, Payment, Delivery, Services, Cars. All of the below diagrams has been used for the visualization of data processing and structured design of the Car process and working flow.

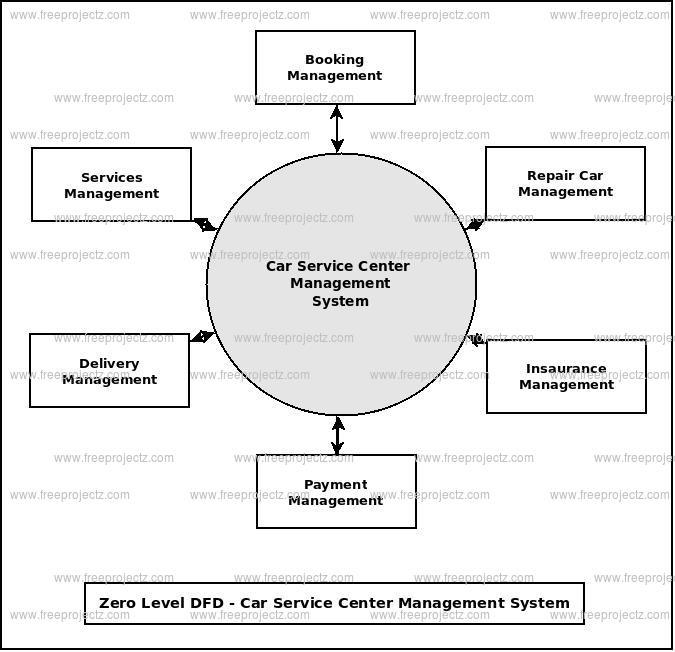

Zero Level Data flow Diagram(0 Level DFD) of Car Service Center Management System :

This is the Zero Level DFD of Car Service Center Management System, where we have eloborated the high level process of Car. It’s a basic overview of the whole Car Service Center Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Delivery,Services and Cars showing the system as a single high-level process, with its relationship to external entities of Booking,Repair Car and Insurance. It should be easily understood by a wide audience, including Booking,Insurance and Delivery In zero leve DFD of Car Service Center Management System, we have described the high level flow of the Car system.

High Level Entities and proccess flow of Car Service Center Management System:

  • Managing all the Booking
  • Managing all the Repair Car
  • Managing all the Insurance
  • Managing all the Payment
  • Managing all the Delivery
  • Managing all the Services
  • Managing all the Cars
Zero Level Data flow Diagram(0 Level DFD) of Car Service Center Management System

First Level Data flow Diagram(1st Level DFD) of Car Service Center Management System :

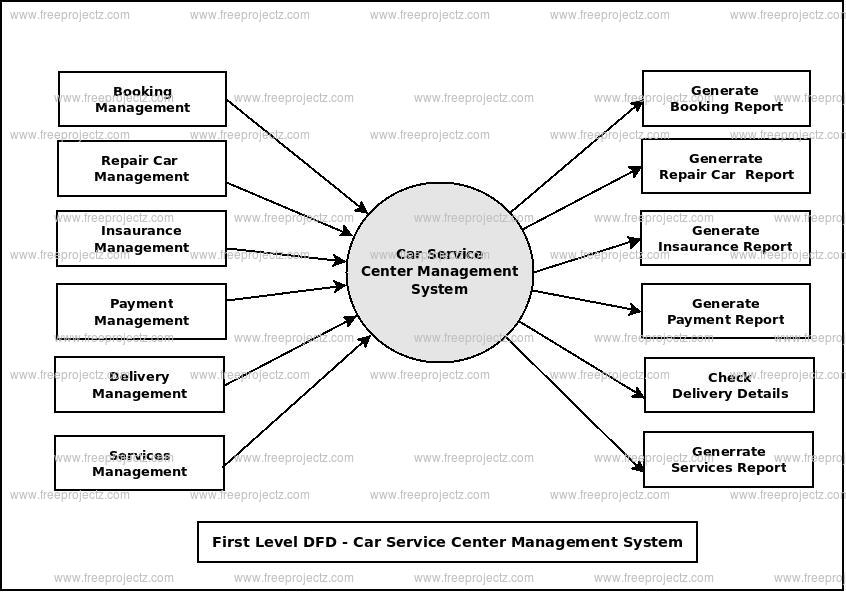

First Level DFD (1st Level) of Car Service Center Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Car Service Center Management System system as a whole. It also identifies internal data stores of Cars, Services, Delivery, Payment, Insurance that must be present in order for the Car system to do its job, and shows the flow of data between the various parts of Booking, Insurance, Services, Cars, Delivery of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Car.

Main entities and output of First Level DFD (1st Level DFD):

  • Processing Booking records and generate report of all Booking
  • Processing Repair Car records and generate report of all Repair Car
  • Processing Insurance records and generate report of all Insurance
  • Processing Payment records and generate report of all Payment
  • Processing Delivery records and generate report of all Delivery
  • Processing Services records and generate report of all Services
  • Processing Cars records and generate report of all Cars
First Level Data flow Diagram(1st Level DFD) of Car Service Center Management System

Second Level Data flow Diagram(2nd Level DFD) of Car Service Center Management System :

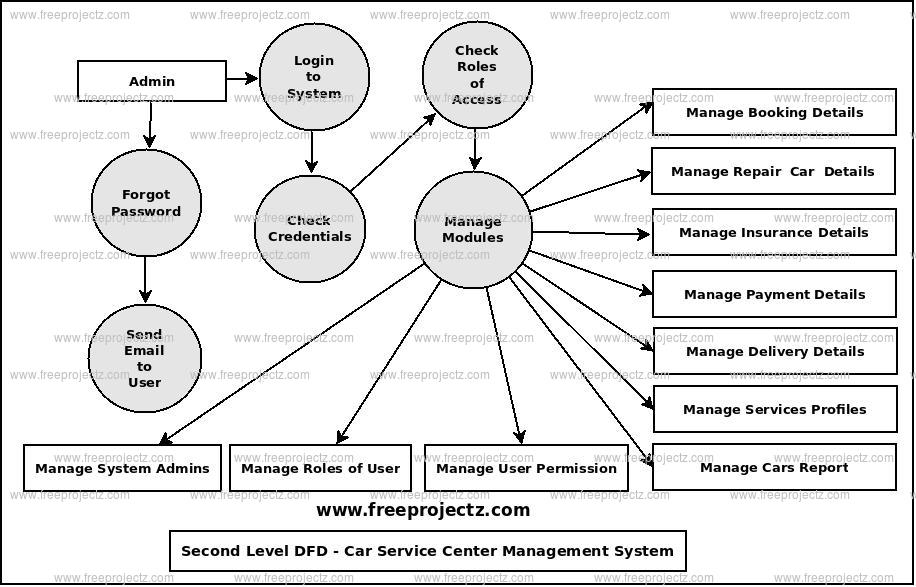

DFD Level 2 then goes one step deeper into parts of Level 1 of Car. It may require more functionalities of Car to reach the necessary level of detail about the Car functioning. First Level DFD (1st Level) of Car Service Center Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Cars, Services, Delivery, Payment, Insurance, Repair Car, Booking.

Low level functionalities of Car Service Center Management System

  • Admin logins to the system and manage all the functionalities of Car Service Center Management System
  • Admin can add, edit, delete and view the records of Booking, Insurance, Delivery, Cars
  • Admin can manage all the details of Repair Car, Payment, Services
  • Admin can also generate reports of Booking, Repair Car, Insurance, Payment, Delivery, Services
  • Admin can search the details of Repair Car, Delivery, Services
  • Admin can apply different level of filters on report of Booking, Payment, Delivery
  • Admin can tracks the detailed information of Repair Car, Insurance, Payment, , Delivery
Second Level Data flow Diagram(2nd Level DFD) of Car Service Center Management System

Car Service Center Management System ER Diagram

Posted By freeproject on July 17, 2017

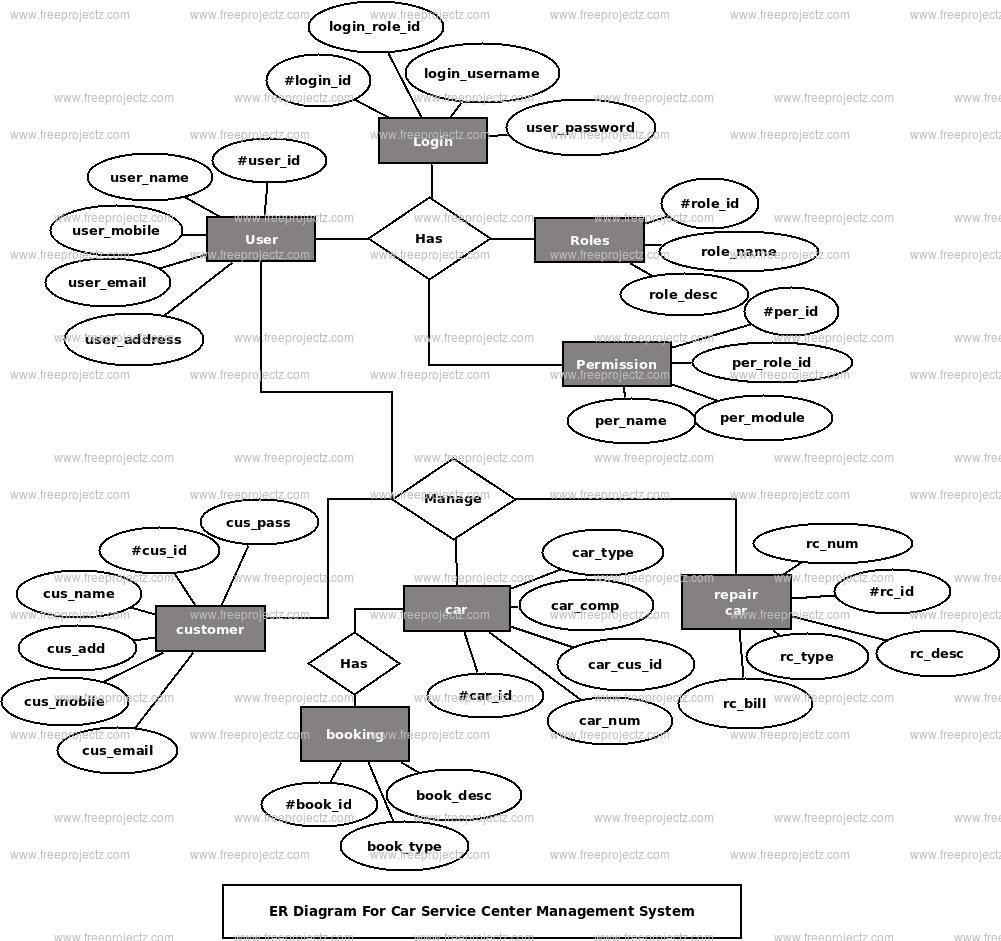

This ER (Entity Relationship) Diagram represents the model of Car Service Center Management System Entity. The entity-relationship diagram of Car Service Center Management System shows all the visual instrument of database tables and the relations between Booking, Insurance, Car, Payment etc. It used structure data and to define the relationships between structured data groups of Car Service Center Management System functionalities. The main entities of the Car Service Center Management System are Car, Booking, Repair Car, Insurance, Customer and Payment.

Car Service Center Management System entities and their attributes :

  • Car Entity : Attributes of Car are car_id, car_customer_id, car_number, car_company car_type, car_description
  • Booking Entity : Attributes of Booking are booking_id, booking_title, booking_type, booking_ticket, booking_date, booking_description
  • Repair Car Entity : Attributes of Repair Car are repair_car_id, repair_car_customer_id, repair_car_number, repair_car_bill, repair_car_type, repair_car_description
  • Insurance Entity : Attributes of Insurance are insurance_id, insurance_bike_id, insurance_number, insurance_date, insurance_expiry, insurance_amount, insurance_type, insurance_description
  • Customer Entity : Attributes of Customer are customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
  • Payment Entity : Attributes of Payment are payment_id, payment_customer_id, payment_date, payment_bill, payment_type, payment_description

Description of Car Service Center Management System Database :

  • The details of Car is store into the Car tables respective with all tables
  • Each entity (Payment, Repair Car, Customer, Booking, Car) contains primary key and unique keys.
  • The entity Repair Car, Customer has binded with Car, Booking entities with foreign key
  • There is one-to-one and one-to-many relationships available between Customer, Insurance, Payment, Car
  • All the entities Car, Customer, Repair Car, Payment are normalized and reduce duplicacy of records
  • We have implemented indexing on each tables of Car Service Center Management System tables for fast query execution.
Car Service Center Management System ER Diagram

Car Service Center Management System Sequence Diagram

Posted By freeproject on January 31, 2018

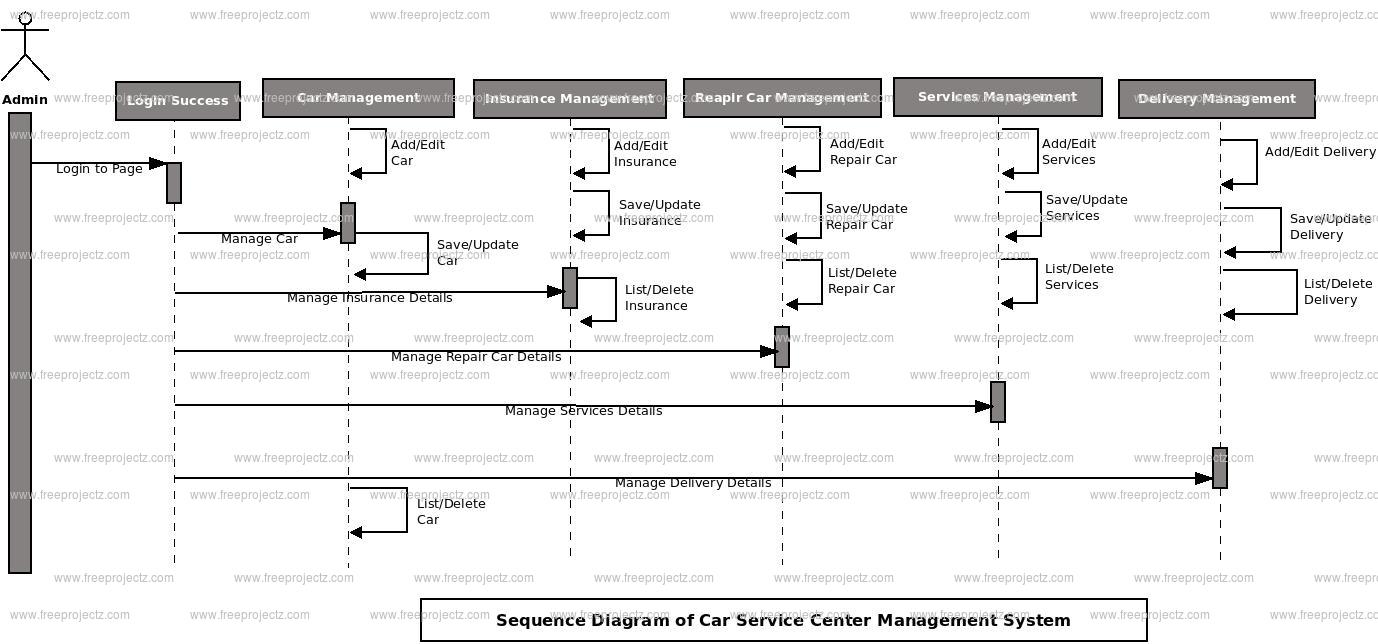

This is the UML sequence diagram of Car Service Center Management System which shows the interaction between the objects of Car, Insurance, Branches center, Services Delivery, Repair Car. The instance of class objects involved in this UML Sequence Diagram of Car Service Center Management System are as follows:

  • Car Object
  • Insurance Object
  • Branches center Object
  • Services Delivery Object
  • Repair Car Object

This is the UML sequence diagram of Car Service Center Management System which shows the interaction between the objects of Car, Insurance, Branches center, Services Delivery, Repair Car. The instance of class objects involved in this UML Sequence Diagram of Car Service Center Management System are as follows:

  • Car Object
  • Insurance Object
  • Branches center Object
  • Services Delivery Object
  • Repair Car Object

Car Service Center Management System Use Case Diagram

Posted By freeproject on July 24, 2017

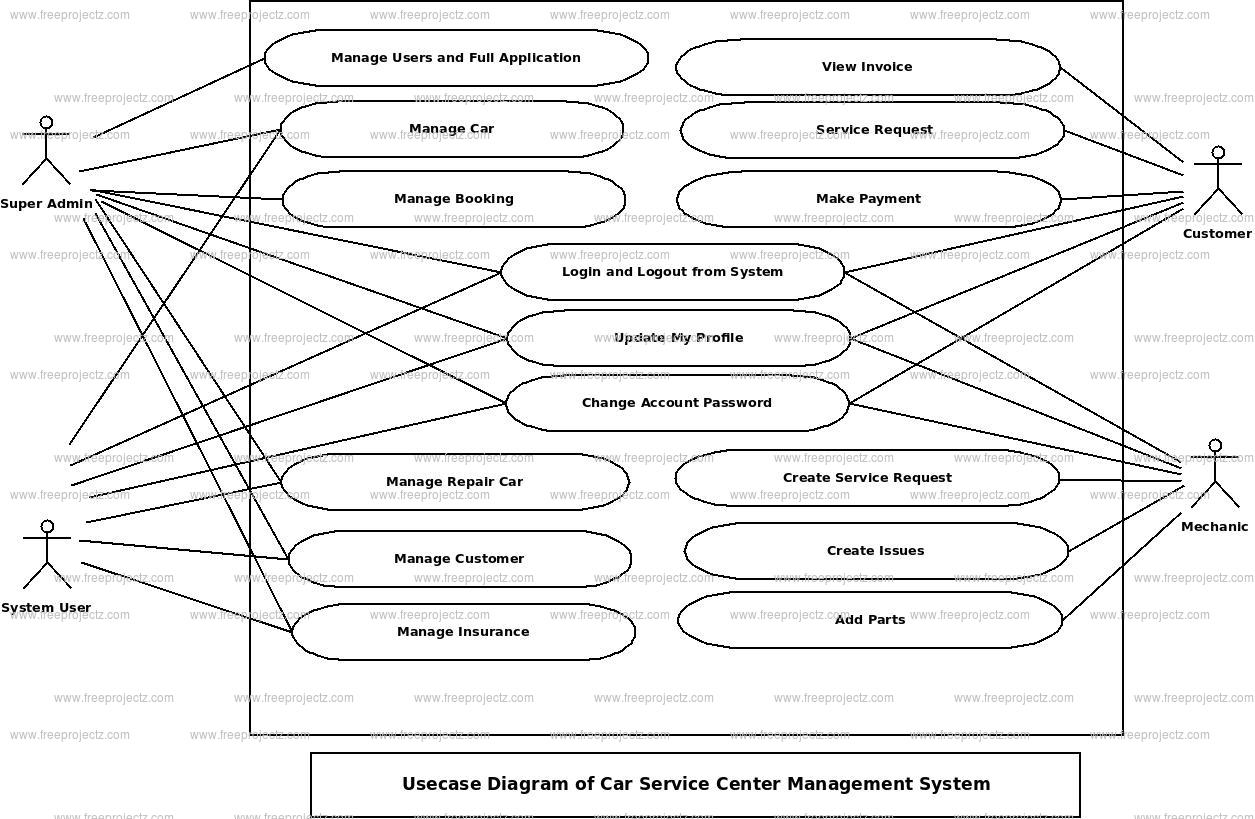

This Use Case Diagram is a graphic depiction of the interactions among the elements of Car Service Center Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Car Service Center Management System. The main actors of Car Service Center Management System in this Use Case Diagram are: Super Admin, System User, Customer, Mechanic, who perform the different type of use cases such as Manage Car, Manage Booking, Manage Repair Car, Manage Insurance, Manage Customer, Manage Payment, Manage Delivery, Manage Services, Manage Branches center, Manage Users and Full Car Service Center Management System Operations. Major elements of the UML use case diagram of Car Service Center Management System are shown on the picture below.

The relationships between and among the actors and the use cases of Car Service Center Management System:

  • Super Admin Entity : Use cases of Super Admin are Manage Car, Manage Booking, Manage Repair Car, Manage Insurance, Manage Customer, Manage Payment, Manage Delivery, Manage Services, Manage Branches center, Manage Users and Full Car Service Center Management System Operations
  • System User Entity : Use cases of System User are Manage Car, Manage Booking, Manage Repair Car, Manage Insurance, Manage Customer, Manage Payment, Manage Delivery, Manage Services, Manage Branches center
  • Customer Entity : Use cases of Customer are Service Request, View Invoice, Make Payment
  • Mechanic Entity : Use cases of Mechanic are Create Service Request, Add Parts, Create Issues, Make Service Charges

Use Case Diagram of Car Service Center Management System :

Car Service Center Management System Use Case Diagram
