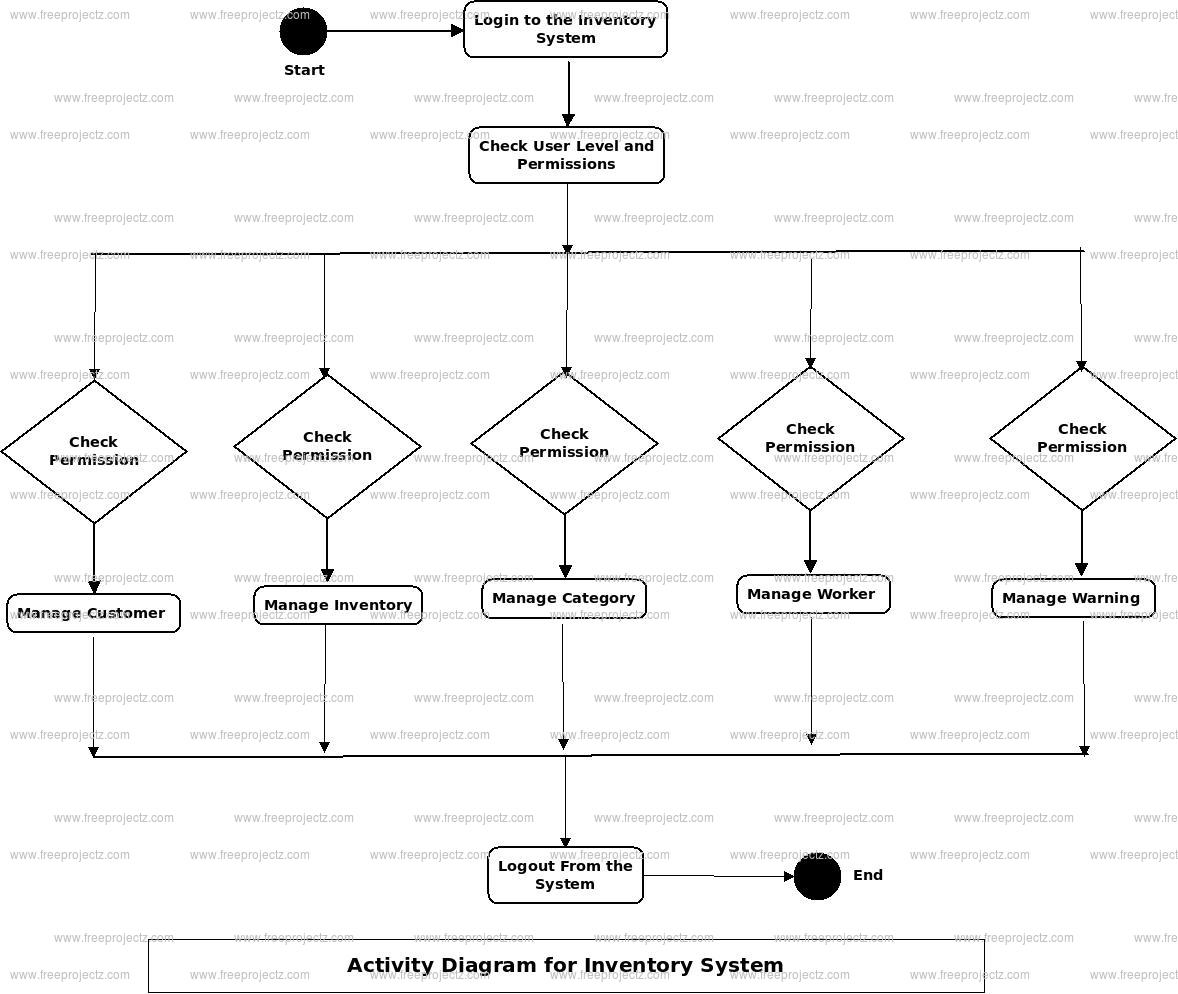

This is the Activity UML diagram of Inventory System which shows the flows between the activity of Customer, Warning, Worker, Manager, Inventory. The main activity involved in this UML Activity Diagram of Inventory System are as follows:
- Customer Activity
- Warning Activity
- Worker Activity
- Manager Activity
- Inventory Activity
Features of the Activity UML diagram of Inventory System
- Admin User can search Customer, view description of a selected Customer, add Customer, update Customer and delete Customer.
- Its shows the activity flow of editing, adding and updating of Warning
- User will be able to search and generate report of Worker, Manager, Inventory
- All objects such as (Customer, Warning, Inventory) are interlinked
- Its shows the full description and flow of Customer, Manager, Inventory, Worker, Warning
Login Activity Diagram of Inventory System:
This is the Login Activity Diagram of Inventory System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Worker, Customer, Warning, Inventory, Manager. All the pages such as Warning, Inventory, Manager are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Inventory System. The various objects in the Inventory, Worker, Customer, Warning, and Manager page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
