Jwellary Shop Management System UML Diagram

Posted By freeproject on March 22, 2018

Jwellery Shop Management System Activity Diagram

Posted By freeproject on March 13, 2018

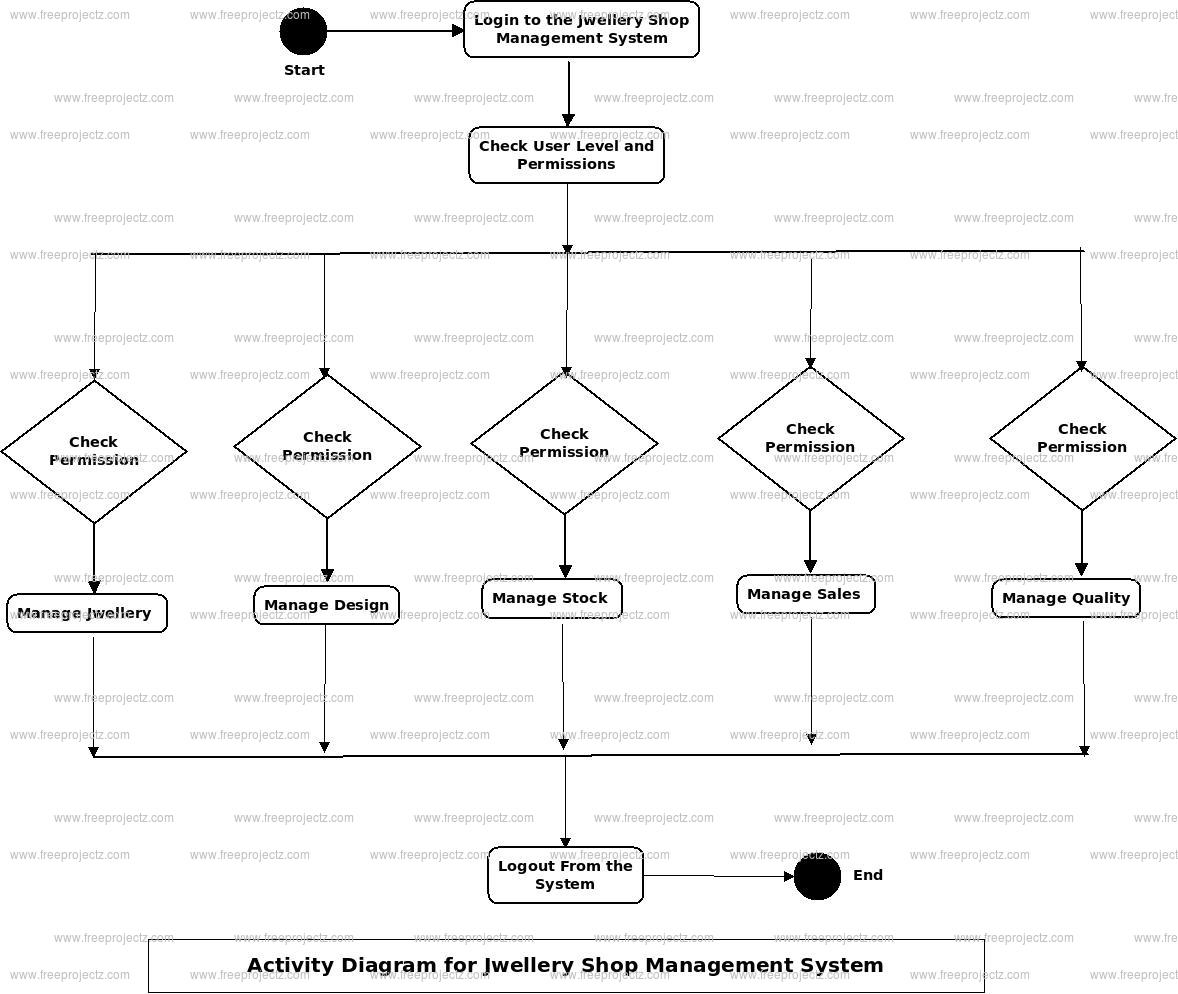

This is the Activity UML diagram of Jwellary Shop Management System which shows the flows between the activity of Stock, Product, Design, Jwellery, Quality. The main activity involved in this UML Activity Diagram of Jwellary Shop Management System are as follows:

  • Stock Activity
  • Product Activity
  • Design Activity
  • Jwellery Activity
  • Quality Activity

Features of the Activity UML diagram of Jwellary Shop Management System

  • Admin User can search Stock, view description of a selected Stock, add Stock, update Stock and delete Stock.
  • Its shows the activity flow of editing, adding and updating of Product
  • User will be able to search and generate report of Design, Jwellery, Quality
  • All objects such as ( Stock, Product, Quality) are interlinked
  • Its shows the full description and flow of Stock, Jwellery, Quality, Design, Product
Jwellery Shop Management System Activity Diagram

Jewellery Shop Management System Class Diagram

Posted By freeproject on August 2, 2017

Jwellary Shop Management System Class Diagram describes the structure of a Jwellary Shop Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Jwellary Shop Management System are Jwellery, Stock, Sales, Quality, Payment, Product.

Classes of Jwellary Shop Management System Class Diagram:

  • Jwellery Class : Manage all the operations of Jwellery
  • Stock Class : Manage all the operations of Stock
  • Sales Class : Manage all the operations of Sales
  • Quality Class : Manage all the operations of Quality
  • Payment Class : Manage all the operations of Payment
  • Product Class : Manage all the operations of Product

Classes and their attributes of Jwellary Shop Management System Class Diagram:

  • Jwellery Attributes : jwellery_id, jwellery_name, jwellery_type, jwellery_description
  • Stock Attributes : stock_id, stock_items, stock_number, stock_type, stock_description
  • Sales Attributes : sales_id, sales_customer_id, sales_amount, sales_type, sales_description
  • Quality Attributes : quality_id, quality_product_id, quality_category, quality_type, quality_description
  • Payment Attributes : payment_id, payment_customer_id, payment_date, payment_amount, payment_description
  • Product Attributes : product_id, product_customer_id product_items, product_number, product_type, product_description

Classes and their methods of Jwellary Shop Management System Class Diagram:

  • Jwellery Methods : addJwellery(), editJwellery(), deleteJwellery(), updateJwellery(), saveJwellery(), searchJwellery()
  • Stock Methods : addStock(), editStock(), deleteStock(), updateStock(), saveStock(), searchStock()
  • Sales Methods : addSales(), editSales(), deleteSales(), updateSales(), saveSales(), searchSales()
  • Quality Methods : addQuality(), editQuality(), deleteQuality(), updateQuality(), saveQuality(), searchQuality()
  • Payment Methods : addPayment(), editPayment(), deletePayment(), updatePayment(), savePayment(), searchPayment()
  • Product Methods : addProduct(), editProduct(), deleteProduct(), updateProduct(), saveProduct(), searchProduct()

Class Diagram of Jwellary Shop Management System :

Class Diagram Image:
Jewellery Shop Management System Class Diagram

Jwellary Shop Management System Component Diagram

Posted By freeproject on February 8, 2018

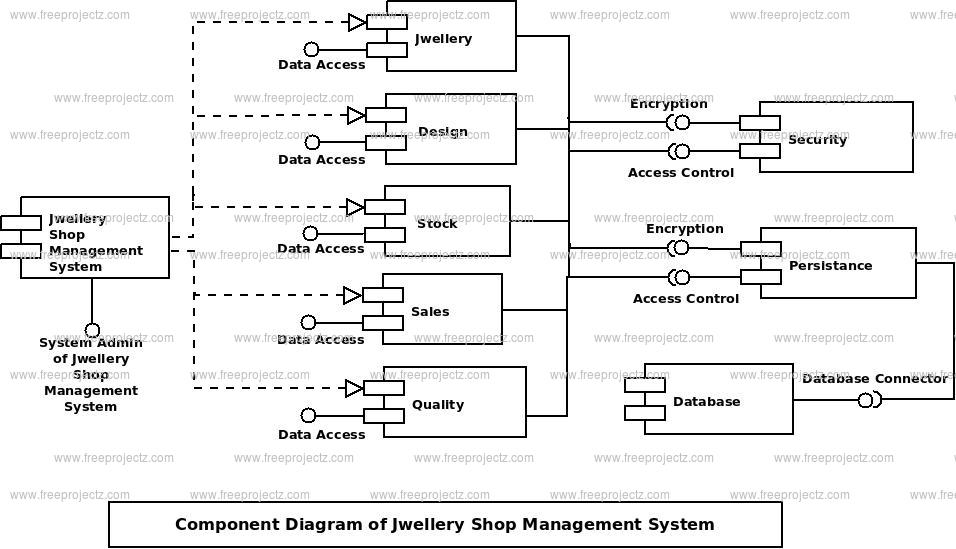

This is a Component diagram of Jwellary Shop Management System which shows components, provided and required interfaces, ports, and relationships between the Stock, Design, Product, Quality and Jwellery. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Jwellary Shop Management System UML component diagram, describes the organization and wiring of the physical components in a system.

Components of UML Component Diagram of Jwellary Shop Management System:

  • Stock Component
  • Design Component
  • Product Component
  • Quality Component
  • Jwellery Component

Featues of Jwellary Shop Management System Component Diagram:

  • You can show the models the components of Jwellary Shop Management System.
  • Model the database schema of Jwellary Shop Management System
  • Model the executables of an application of Jwellary Shop Management System
  • Model the system's source code of Jwellary Shop Management System
Component Diagram:

Jwellary Shop Management System Dataflow Diagram

Posted By namita on July 5, 2017

Jwellary Shop Management System Data flow diagram is often used as a preliminary step to create an overview of the Jwellary without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Jwellary process. It contains all of the userflow and their entities such all the flow of Jwellary, Design, Stock, Sales, Quality, Payment, Product. All of the below diagrams has been used for the visualization of data processing and structured design of the Jwellary process and working flow.


Zero Level Data flow Diagram(0 Level DFD) of Jwellary Shop Management System :

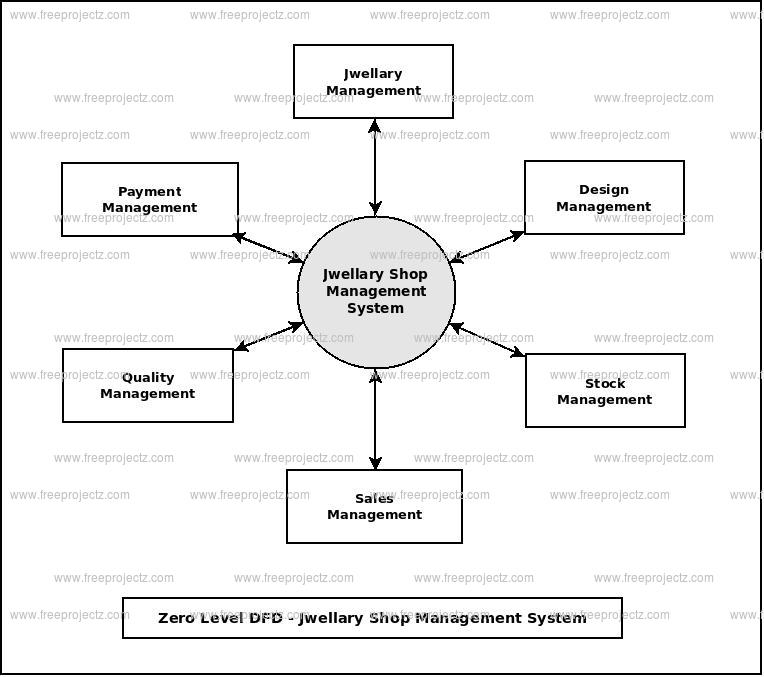

This is the Zero Level DFD of Jwellary Shop Management System, where we have eloborated the high level process of Jwellary. It’s a basic overview of the whole Jwellary Shop Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Quality,Payment and Product showing the system as a single high-level process, with its relationship to external entities of Jwellary,Design and Stock. It should be easily understood by a wide audience, including Jwellary,Stock and Quality In zero leve DFD of Jwellary Shop Management System, we have described the high level flow of the Jwellary system.

High Level Entities and proccess flow of Jwellary Shop Management System:

  • Managing all the Jwellary
  • Managing all the Design
  • Managing all the Stock
  • Managing all the Sales
  • Managing all the Quality
  • Managing all the Payment
  • Managing all the Product
Zero Level Data flow Diagram(0 Level DFD) of Jwellary Shop Management System

First Level Data flow Diagram(1st Level DFD) of Jwellary Shop Management System :

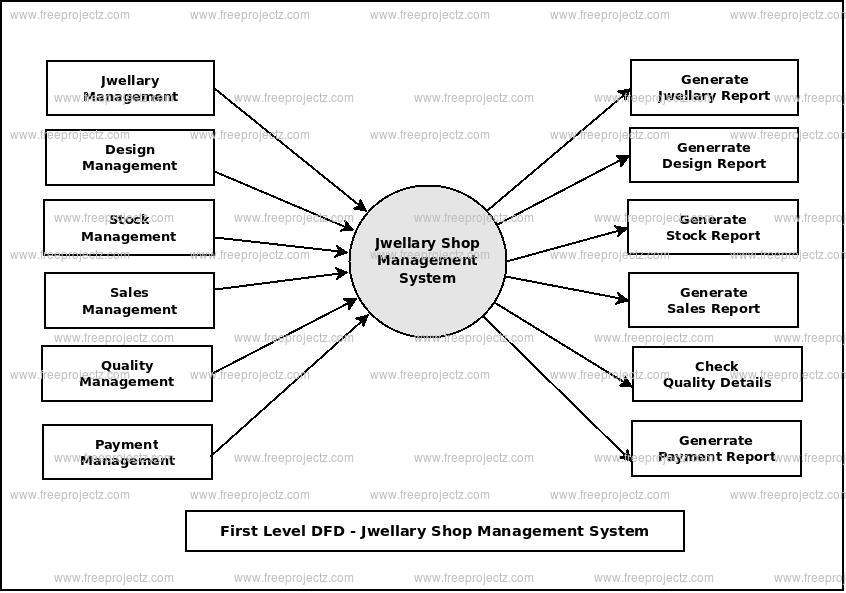

First Level DFD (1st Level) of Jwellary Shop Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Jwellary Shop Management System system as a whole. It also identifies internal data stores of Product, Payment, Quality, Sales, Stock that must be present in order for the Jwellary system to do its job, and shows the flow of data between the various parts of Jwellary, Stock, Payment, Product, Quality of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Jwellary.

Main entities and output of First Level DFD (1st Level DFD):

  • Processing Jwellary records and generate report of all Jwellary
  • Processing Design records and generate report of all Design
  • Processing Stock records and generate report of all Stock
  • Processing Sales records and generate report of all Sales
  • Processing Quality records and generate report of all Quality
  • Processing Payment records and generate report of all Payment
  • Processing Product records and generate report of all Product
First Level Data flow Diagram(1st Level DFD) of Jwellary Shop Management System

Second Level Data flow Diagram(2nd Level DFD) of Jwellary Shop Management System :

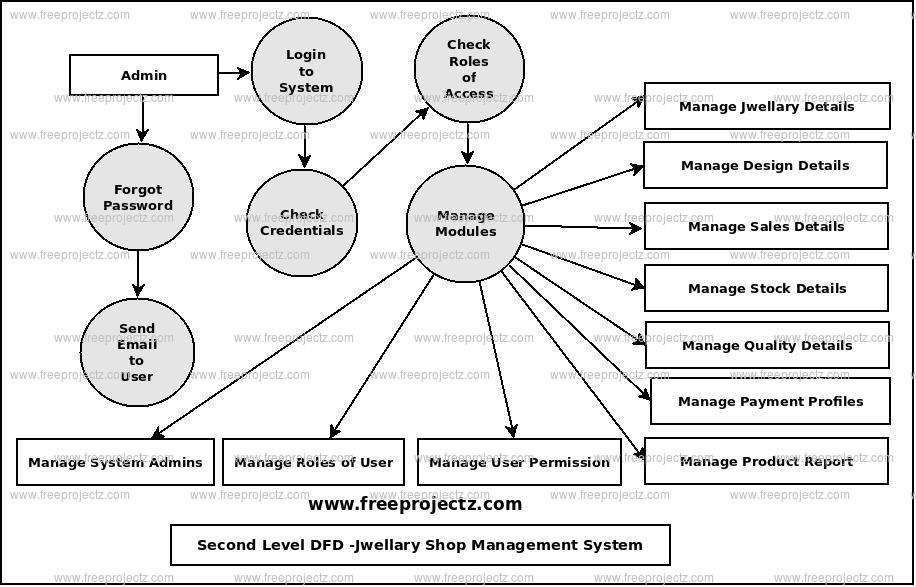

DFD Level 2 then goes one step deeper into parts of Level 1 of Jwellary. It may require more functionalities of Jwellary to reach the necessary level of detail about the Jwellary functioning. First Level DFD (1st Level) of Jwellary Shop Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Product, Payment, Quality, Sales, Stock, Design, Jwellary.

Low level functionalities of Jwellary Shop Management System

  • Admin logins to the system and manage all the functionalities of Jwellary Shop Management System
  • Admin can add, edit, delete and view the records of Jwellary, Stock, Quality, Product
  • Admin can manage all the details of Design, Sales, Payment
  • Admin can also generate reports of Jwellary, Design, Stock, Sales, Quality, Payment
  • Admin can search the details of Design, Quality, Payment
  • Admin can apply different level of filters on report of Jwellary, Sales, Quality
  • Admin can tracks the detailed information of Design, Stock, Sales, , Quality
Second Level Data flow Diagram(2nd Level DFD) of Jwellary Shop Management System

Jwellary Shop Management System ER Diagram

Posted By freeproject on July 17, 2017

This ER (Entity Relationship) Diagram represents the model of Jwellary Shop Management System Entity. The entity-relationship diagram of Jwellary Shop Management System shows all the visual instrument of database tables and the relations between Stock, Quality, Jwellery, Product etc. It used structure data and to define the relationships between structured data groups of Jwellary Shop Management System functionalities. The main entities of the Jwellary Shop Management System are Jwellery, Stock, Sales, Quality, Payment and Product.

Jwellary Shop Management System entities and their attributes :

  • Jwellery Entity : Attributes of Jwellery are jwellery_id, jwellery_name, jwellery_type, jwellery_description
  • Stock Entity : Attributes of Stock are stock_id, stock_items, stock_number, stock_type, stock_description
  • Sales Entity : Attributes of Sales are sales_id, sales_customer_id, sales_amount, sales_type, sales_description
  • Quality Entity : Attributes of Quality are quality_id, quality_product_id, quality_category, quality_type, quality_description
  • Payment Entity : Attributes of Payment are payment_id, payment_customer_id, payment_date, payment_amount, payment_description
  • Product Entity : Attributes of Product are product_id, product_customer_id product_items, product_number, product_type, product_description

Description of Jwellary Shop Management System Database :

  • The details of Jwellery is store into the Jwellery tables respective with all tables
  • Each entity (Product, Sales, Payment, Stock, Jwellery) contains primary key and unique keys.
  • The entity Sales, Payment has binded with Jwellery, Stock entities with foreign key
  • There is one-to-one and one-to-many relationships available between Payment, Quality, Product, Jwellery
  • All the entities Jwellery, Payment, Sales, Product are normalized and reduce duplicacy of records
  • We have implemented indexing on each tables of Jwellary Shop Management System tables for fast query execution.
Jwellary Shop Management System ER Diagram

Jwellary Shop Management System Sequence Diagram

Posted By freeproject on January 31, 2018

This is the UML sequence diagram of Jwellary Shop Management System which shows the interaction between the objects of Payment, Quality, Sales, Jwellery, Product. The instance of class objects involved in this UML Sequence Diagram of Jwellary Shop Management System are as follows:

  • Payment Object
  • Quality Object
  • Sales Object
  • Jwellery Object
  • Product Object

This is the UML sequence diagram of Jwellary Shop Management System which shows the interaction between the objects of Payment, Quality, Sales, Jwellery, Product. The instance of class objects involved in this UML Sequence Diagram of Jwellary Shop Management System are as follows:

  • Payment Object
  • Quality Object
  • Sales Object
  • Jwellery Object
  • Product Object

Jwellary Shop Management System Use Case Diagram

Posted By freeproject on July 24, 2017

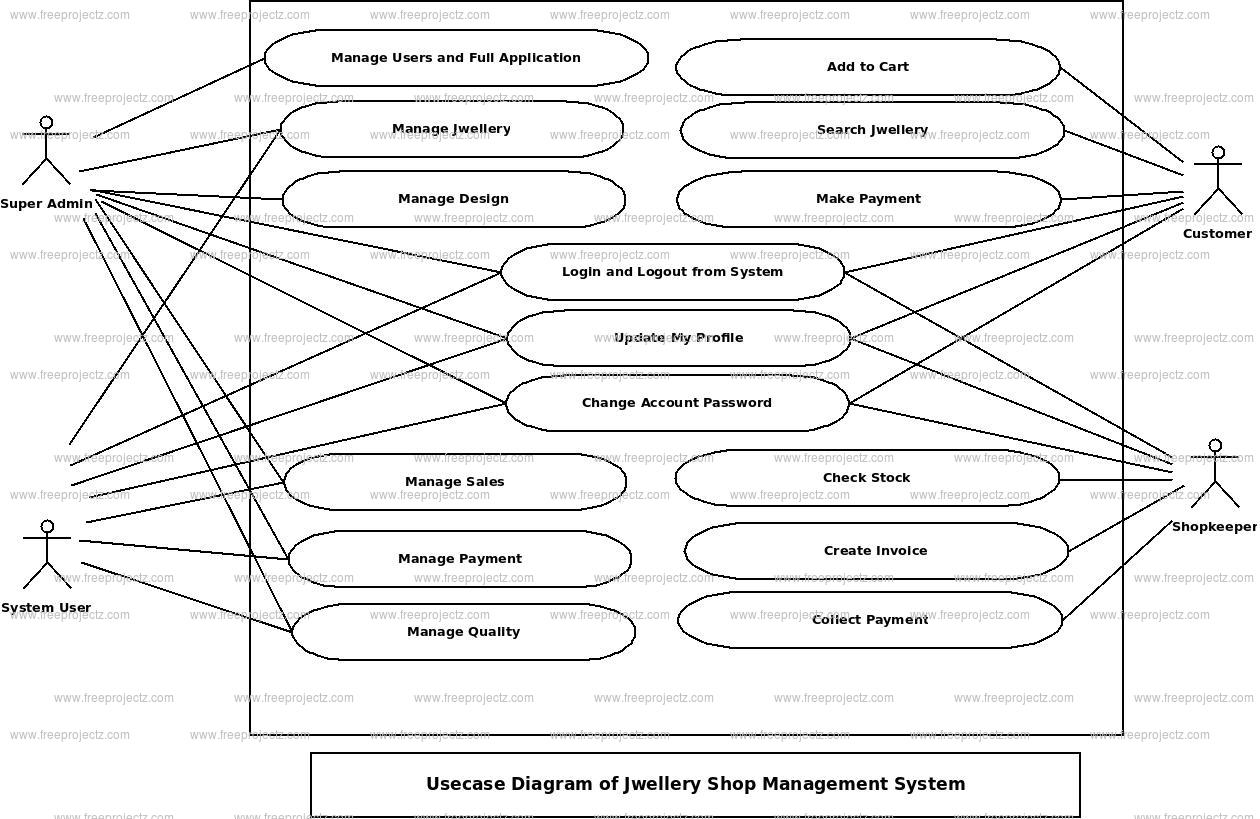

This Use Case Diagram is a graphic depiction of the interactions among the elements of Jwellary Shop Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Jwellary Shop Management System. The main actors of Jwellary Shop Management System in this Use Case Diagram are: Super Admin, System User, Shopkeeper, Customer, who perform the different type of use cases such as Manage Jwellery, Manage Design, Manage Stock, Manage Sales, Manage Quality, Manage Payment, Manage Product, Manage Users and Full Jwellary Shop Management System Operations. Major elements of the UML use case diagram of Jwellary Shop Management System are shown on the picture below.

The relationships between and among the actors and the use cases of Jwellary Shop Management System:

  • Super Admin Entity : Use cases of Super Admin are Manage Jwellery, Manage Design, Manage Stock, Manage Sales, Manage Quality, Manage Payment, Manage Product, Manage Users and Full Jwellary Shop Management System Operations
  • System User Entity : Use cases of System User are Manage Jwellery, Manage Design, Manage Stock, Manage Sales, Manage Quality, Manage Payment, Manage Product
  • Shopkeeper Entity : Use cases of Shopkeeper are Check Stock, Create Invoice, Collect Payments
  • Customer Entity : Use cases of Customer are Search Jwellary, Add to Cart, Make Payment

Use Case Diagram of Jwellary Shop Management System :

Jwellary Shop Management System Use Case Diagram
