Stock Management System Activity Diagram

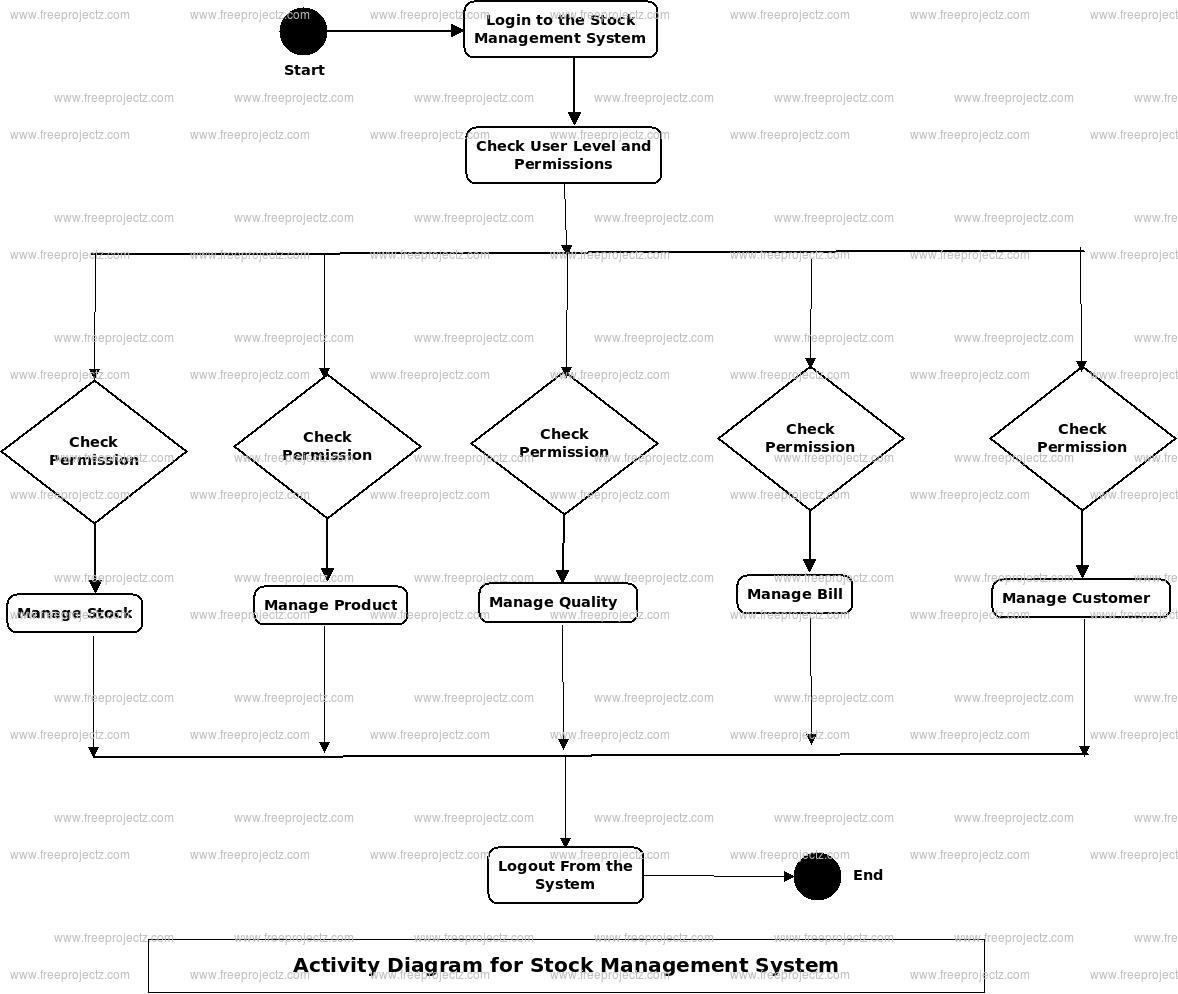

This is the Activity UML diagram of Stock Management System which shows the flows between the activity of Customer, Bill, Stock, Product, Store. The main activity involved in this UML Activity Diagram of Stock Management System are as follows:
- Customer Activity
- Bill Activity
- Stock Activity
- Product Activity
- Store Activity
Features of the Activity UML diagram of Stock Management System
- Admin User can search Customer, view description of a selected Customer, add Customer, update Customer and delete Customer.
- Its shows the activity flow of editing, adding and updating of Bill
- User will be able to search and generate report of Stock, Product, Store
- All objects such as ( Customer, Bill, Store) are interlinked
- Its shows the full description and flow of Customer, Product, Store, Stock, Bill
Login Activity Diagram of Stock Management System:
This is the Login Activity Diagram of Stock Management System, which shows the flows of Login Activity, where admin will be able to login using their username and password. After login user can manage all the operations on Stock, Customer, Bill, Store, Product. All the pages such as Bill, Store, Product are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Stock Management System. The various objects in the Store, Stock, Customer, Bill, and Product page—interact over the course of the Activity, and user will not be able to access this page without verifying their identity.
- Posted By: freeproject
- Comments: 0
Stock Management System Class Diagram
Stock Management System Class Diagram describes the structure of a Stock Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Stock Management System are Stock, Product, Product Quality, Bill, Customer, Store.
Classes of Stock Management System Class Diagram:
- Stock Class : Manage all the operations of Stock
- Product Class : Manage all the operations of Product
- Product Quality Class : Manage all the operations of Product Quality
- Bill Class : Manage all the operations of Bill
- Customer Class : Manage all the operations of Customer
- Store Class : Manage all the operations of Store
Classes and their attributes of Stock Management System Class Diagram:
- Stock Attributes : stock_id, stock_items, stock_number, stock_type, stock_description
- Product Attributes : product_id, product_customer_id product_items, product_number, product_type, product_description
- Product Quality Attributes : product_quality_id, product_quality_name, product_quality_type, product_quality_description
- Bill Attributes : bill_id, bill_customer_id, bill_number, bill_type, bill_receipt, bill_description
- Customer Attributes : customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
- Store Attributes : store_id, store_name, store_type, store_description
Classes and their methods of Stock Management System Class Diagram:
- Stock Methods : addStock(), editStock(), deleteStock(), updateStock(), saveStock(), searchStock()
- Product Methods : addProduct(), editProduct(), deleteProduct(), updateProduct(), saveProduct(), searchProduct()
- Product Quality Methods : addProduct Quality(), editProduct Quality(), deleteProduct Quality(), updateProduct Quality(), saveProduct Quality(), searchProduct Quality()
- Bill Methods : addBill(), editBill(), deleteBill(), updateBill(), saveBill(), searchBill()
- Customer Methods : addCustomer(), editCustomer(), deleteCustomer(), updateCustomer(), saveCustomer(), searchCustomer()
- Store Methods : addStore(), editStore(), deleteStore(), updateStore(), saveStore(), searchStore()
Class Diagram of Stock Management System :
- Posted By: freeproject
- Comments: 0
Stock Management System Component Diagram
This is a Component diagram of Stock Management System which shows components, provided and required interfaces, ports, and relationships between the Store, Bill, Product, Stock and Quality. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Stock Management System UML component diagram, describes the organization and wiring of the physical components in a system.
Components of UML Component Diagram of Stock Management System:
- Store Component
- Bill Component
- Product Component
- Stock Component
- Quality Component
Featues of Stock Management System Component Diagram:
- You can show the models the components of Stock Management System.
- Model the database schema of Stock Management System
- Model the executables of an application of Stock Management System
- Model the system's source code of Stock Management System
- Posted By: namita
- Comments: 0
Stock Management System Dataflow Diagram
Stock Management System Data flow diagram is often used as a preliminary step to create an overview of the Stock without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Stock process. It contains all of the userflow and their entities such all the flow of Stock, Product, Product Quality, Bill, Customer, Store, Login. All of the below diagrams has been used for the visualization of data processing and structured design of the Stock process and working flow.
Zero Level Data flow Diagram(0 Level DFD) of Stock Management System :

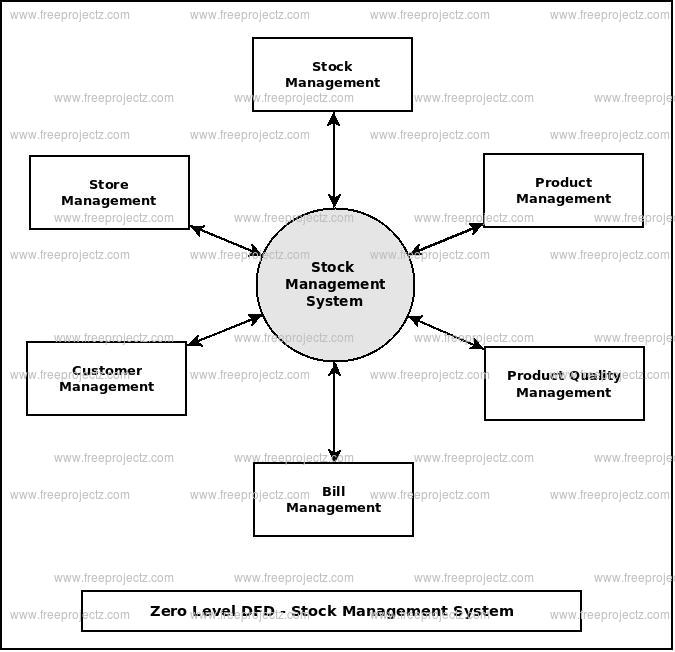

This is the Zero Level DFD of Stock Management System, where we have eloborated the high level process of Stock. It’s a basic overview of the whole Stock Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Customer,Store and Login showing the system as a single high-level process, with its relationship to external entities of Stock,Product and Product Quality. It should be easily understood by a wide audience, including Stock,Product Quality and Customer In zero leve DFD of Stock Management System, we have described the high level flow of the Stock system.High Level Entities and proccess flow of Stock Management System:
- Managing all the Stock
- Managing all the Product
- Managing all the Product Quality
- Managing all the Bill
- Managing all the Customer
- Managing all the Store
- Managing all the Login
First Level Data flow Diagram(1st Level DFD) of Stock Management System :

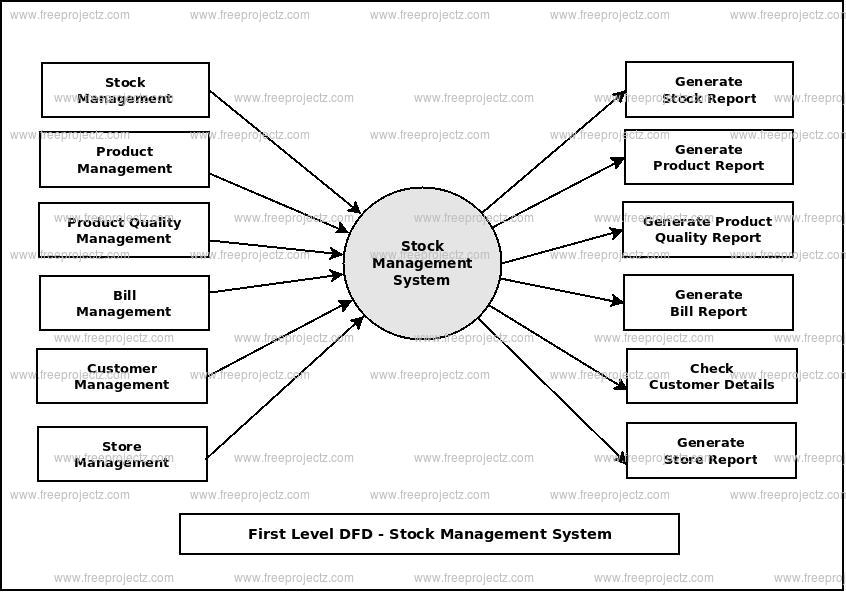

First Level DFD (1st Level) of Stock Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Stock Management System system as a whole. It also identifies internal data stores of Login, Store, Customer, Bill, Product Quality that must be present in order for the Stock system to do its job, and shows the flow of data between the various parts of Stock, Product Quality, Store, Login, Customer of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Stock.Main entities and output of First Level DFD (1st Level DFD):
- Processing Stock records and generate report of all Stock
- Processing Product records and generate report of all Product
- Processing Product Quality records and generate report of all Product Quality
- Processing Bill records and generate report of all Bill
- Processing Customer records and generate report of all Customer
- Processing Store records and generate report of all Store
- Processing Login records and generate report of all Login
Second Level Data flow Diagram(2nd Level DFD) of Stock Management System :
DFD Level 2 then goes one step deeper into parts of Level 1 of Stock. It may require more functionalities of Stock to reach the necessary level of detail about the Stock functioning. First Level DFD (1st Level) of Stock Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Login, Store, Customer, Bill, Product Quality, Product, Stock.Low level functionalities of Stock Management System
- Admin logins to the system and manage all the functionalities of Stock Management System
- Admin can add, edit, delete and view the records of Stock, Product Quality, Customer, Login
- Admin can manage all the details of Product, Bill, Store
- Admin can also generate reports of Stock, Product, Product Quality, Bill, Customer, Store
- Admin can search the details of Product, Customer, Store
- Admin can apply different level of filters on report of Stock, Bill, Customer
- Admin can tracks the detailed information of Product, Product Quality, Bill, , Customer
- Posted By: freeproject
- Comments: 0
Stock Management System ER Diagram
This ER (Entity Relationship) Diagram represents the model of Stock Management System Entity. The entity-relationship diagram of Stock Management System shows all the visual instrument of database tables and the relations between Product, Bill, Stock, Store etc. It used structure data and to define the relationships between structured data groups of Stock Management System functionalities. The main entities of the Stock Management System are Stock, Product, Product Quality, Bill, Customer and Store.
Stock Management System entities and their attributes :
- Stock Entity : Attributes of Stock are stock_id, stock_items, stock_number, stock_type, stock_description
- Product Entity : Attributes of Product are product_id, product_customer_id product_items, product_number, product_type, product_description
- Product Quality Entity : Attributes of Product Quality are product_quality_id, product_quality_name, product_quality_type, product_quality_description
- Bill Entity : Attributes of Bill are bill_id, bill_customer_id, bill_number, bill_type, bill_receipt, bill_description
- Customer Entity : Attributes of Customer are customer_id, customer_name, customer_mobile, customer_email, customer_username, customer_password, customer_address
- Store Entity : Attributes of Store are store_id, store_name, store_type, store_description
Description of Stock Management System Database :
- The details of Stock is store into the Stock tables respective with all tables
- Each entity ( Store, Product Quality, Customer, Product, Stock) contains primary key and unique keys.
- The entity Product Quality, Customer has binded with Stock, Product entities with foreign key
- There is one-to-one and one-to-many relationships available between Customer, Bill, Store, Stock
- All the entities Stock, Customer, Product Quality, Store are normalized and reduce duplicacy of records
- We have implemented indexing on each tables of Stock Management System tables for fast query execution.
- Posted By: freeproject
- Comments: 0
Stock Management System Sequence Diagram
This is the UML sequence diagram of Stock Management System which shows the interaction between the objects of Stock, Product, Customer, Store, Quality. The instance of class objects involved in this UML Sequence Diagram of Stock Management System are as follows:
- Stock Object
- Product Object
- Customer Object
- Store Object
- Quality Object
Login Sequence Diagram of Stock Management System:
This is the Login Sequence Diagram of Stock Management System, where admin will be able to login in their account using their credentials. After login user can manage all the operations on Customer, Stock, Product, Quality, Store. All the pages such as Product, Quality, Store are secure and user can access these page after login. The diagram below helps demonstrate how the login page works in a Stock Management System. The various objects in the Quality, Customer, Stock, Product, and Store page—interact over the course of the sequence, and user will not be able to access this page without verifying their identity.
This is the UML sequence diagram of Stock Management System which shows the interaction between the objects of Stock, Product, Customer, Store, Quality. The instance of class objects involved in this UML Sequence Diagram of Stock Management System are as follows:
- Stock Object
- Product Object
- Customer Object
- Store Object
- Quality Object
- Posted By: freeproject
- Comments: 0
Stock Management System Use Case Diagram
This Use Case Diagram is a graphic depiction of the interactions among the elements of Stock Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Stock Management System. The main actors of Stock Management System in this Use Case Diagram are: Super Admin, System User, Agents, Customers, who perform the different type of use cases such as Stock, Manage Product, Manage Product Quality, Manage Bill, Manage Customer, Manage Store, Manage Users and Full Stock Management System Operations. Major elements of the UML use case diagram of Stock Management System are shown on the picture below.
The relationships between and among the actors and the use cases of Stock Management System:
- Super Admin Entity : Use cases of Super Admin are Stock, Manage Product, Manage Product Quality, Manage Bill, Manage Customer, Manage Store, Manage Users and Full Stock Management System Operations
- System User Entity : Use cases of System User are Stock, Manage Product, Manage Product Quality, Manage Bill, Manage Customer, Manage Store
- Agents Entity : Use cases of Agents are Update Stocks, Add Products, Create Bills
- Customers Entity : Use cases of Customers are Search Product, Create Orders, Make Payments
Use Case Diagram of Stock Management System :
