Marrige Beuro Management Use Case Diagram

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Marrige Buero Management. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Marrige Buero Management. The main actors of Marrige Buero Management in this Use Case Diagram are: Super Admin, System User, Agent, Customers, who perform the different type of use cases such as Manage Search Partners, Manage Registration, Manage Contact Profile, Manage Photograps, Manage Documents Support, Manage Multipile Types, Manage Users and Full Marrige Buero Management Operations. Major elements of the UML use case diagram of Marrige Buero Management are shown on the picture below.

The relationships between and among the actors and the use cases of Marrige Buero Management:

  • Super Admin Entity : Use cases of Super Admin are Manage Search Partners, Manage Registration, Manage Contact Profile, Manage Photograps, Manage Documents Support, Manage Multipile Types, Manage Users and Full Marrige Buero Management Operations
  • System User Entity : Use cases of System User are Manage Search Partners, Manage Registration, Manage Contact Profile, Manage Photograps, Manage Documents Support, Manage Multipile Types
  • Agent Entity : Use cases of Agent are Create Requirements, Search Partners, Match Profles, Create Profiles
  • Customers Entity : Use cases of Customers are Create Profiles, Upload Biodata, Match Profile, Make Payments

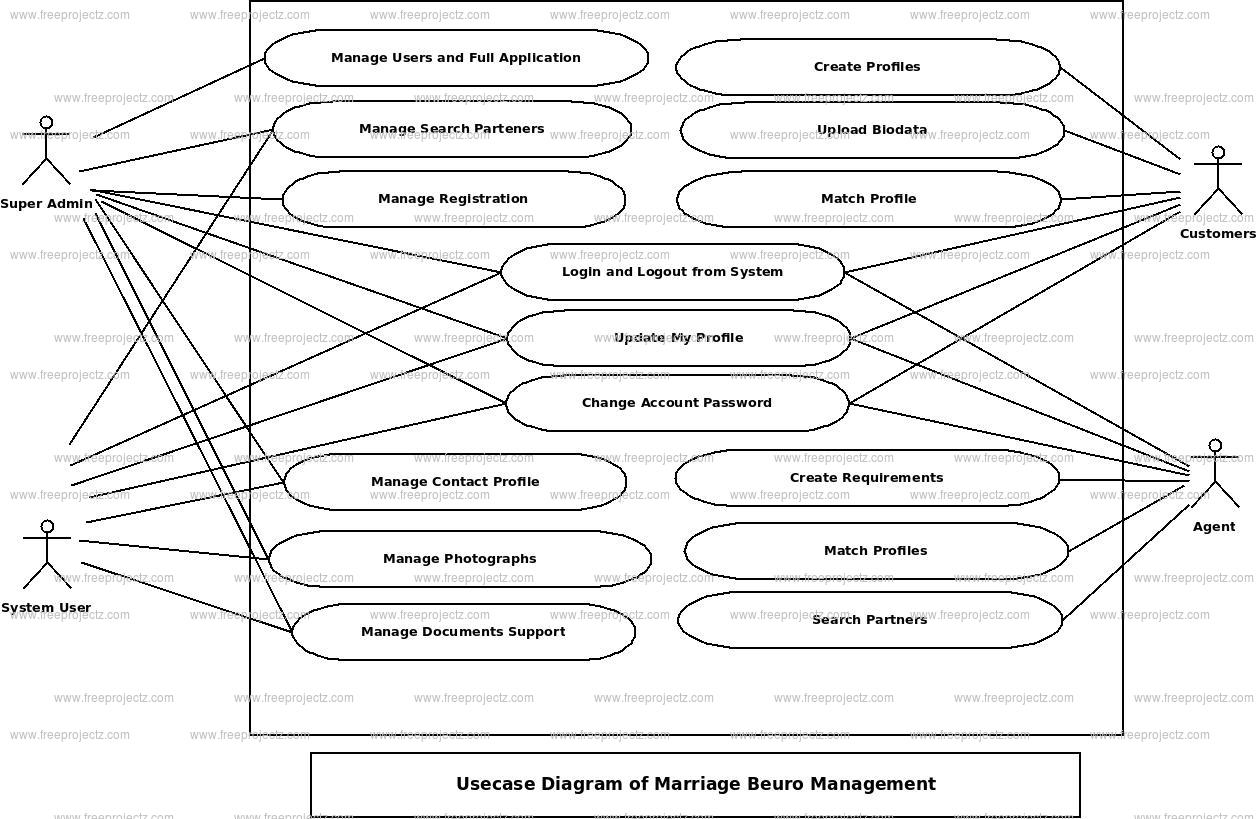

Use Case Diagram of Marrige Buero Management :
