Export Order Tracking System UML Diagram

Posted By freeproject on March 19, 2018

Export Order Tracking System Activity Diagram

Posted By freeproject on March 13, 2018

This is the Activity UML diagram of Export Order Tracking System which shows the flows between the activity of Stock, Payments, Sales, Order, Exports. The main activity involved in this UML Activity Diagram of Export Order Tracking System are as follows:

  • Stock Activity
  • Payments Activity
  • Sales Activity
  • Order Activity
  • Exports Activity

Features of the Activity UML diagram of Export Order Tracking System

  • Admin User can search Stock, view description of a selected Stock, add Stock, update Stock and delete Stock.
  • Its shows the activity flow of editing, adding and updating of Payments
  • User will be able to search and generate report of Sales, Order, Exports
  • All objects such as ( Stock, Payments, Exports) are interlinked
  • Its shows the full description and flow of Stock, Order, Exports, Sales, Payments

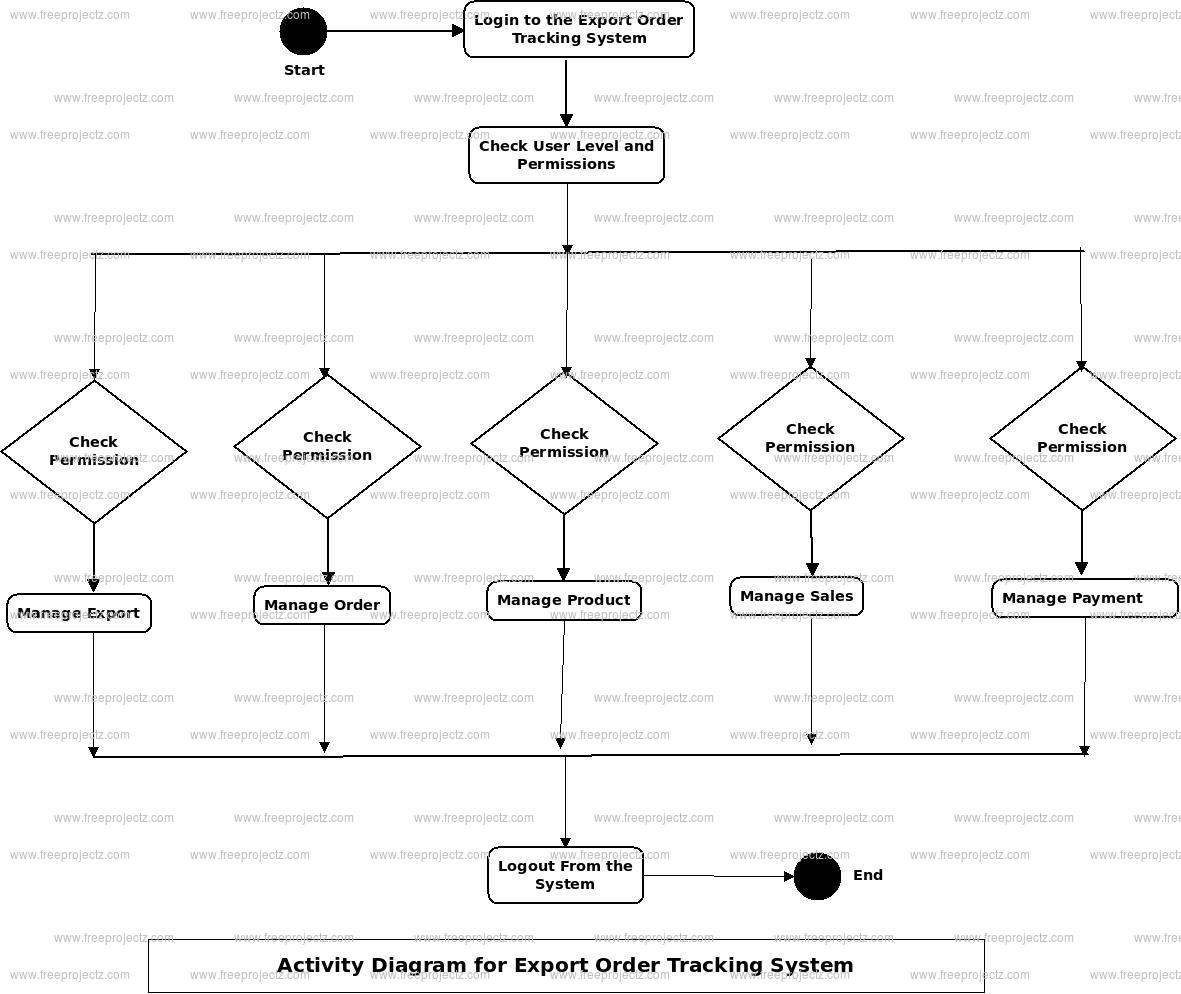

Export Order Tracking System Activity Diagram

Export Order Tracking System Class Diagram

Posted By freeproject on August 2, 2017

Export Order Tracking System Class Diagram describes the structure of a Export Order Tracking System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Export Order Tracking System are Exports, Products, Sales, Payments, Stock, Inventory.

Classes of Export Order Tracking System Class Diagram:

  • Exports Class : Manage all the operations of Exports
  • Products Class : Manage all the operations of Products
  • Sales Class : Manage all the operations of Sales
  • Payments Class : Manage all the operations of Payments
  • Stock Class : Manage all the operations of Stock
  • Inventory Class : Manage all the operations of Inventory

Classes and their attributes of Export Order Tracking System Class Diagram:

  • Exports Attributes : export_id, export_name, export_date, export_place, export_type, export_description
  • Products Attributes : product_id, product_customer_id product_items, product_number, product_type, product_description
  • Sales Attributes : sales_id, sales_customer_id, sales_amount, sales_type, sales_description
  • Payments Attributes : payment_id, payment_customer_id, payment_date, payment_amount, payment_description
  • Stock Attributes : stock_id, stock_items, stock_number, stock_type, stock_description
  • Inventory Attributes : inventory_id, inventory_items, inventory_number, inventory_type, inventory_description

Classes and their methods of Export Order Tracking System Class Diagram:

  • Exports Methods : addExports(), editExports(), deleteExports(), updateExports(), saveExports(), searchExports()
  • Products Methods : addProducts(), editProducts(), deleteProducts(), updateProducts(), saveProducts(), searchProducts()
  • Sales Methods : addSales(), editSales(), deleteSales(), updateSales(), saveSales(), searchSales()
  • Payments Methods : addPayments(), editPayments(), deletePayments(), updatePayments(), savePayments(), searchPayments()
  • Stock Methods : addStock(), editStock(), deleteStock(), updateStock(), saveStock(), searchStock()
  • Inventory Methods : addInventory(), editInventory(), deleteInventory(), updateInventory(), saveInventory(), searchInventory()

Class Diagram of Export Order Tracking System :

Class Diagram Image:
Export Order Tracking System Class Diagram

Export Order Tracking System Component Diagram

Posted By freeproject on February 8, 2018

This is a Component diagram of Export Order Tracking System which shows components, provided and required interfaces, ports, and relationships between the Order, Stock, Sales, Exports and Payments. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Export Order Tracking System UML component diagram, describes the organization and wiring of the physical components in a system.

Components of UML Component Diagram of Export Order Tracking System:

  • Order Component
  • Stock Component
  • Sales Component
  • Exports Component
  • Payments Component

Featues of Export Order Tracking System Component Diagram:

  • You can show the models the components of Export Order Tracking System.
  • Model the database schema of Export Order Tracking System
  • Model the executables of an application of Export Order Tracking System
  • Model the system's source code of Export Order Tracking System
Component Diagram:

Export Order Tracking System Dataflow Diagram

Posted By namita on July 3, 2017

Export Order Tracking System Data flow diagram is often used as a preliminary step to create an overview of the Export without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Export process. It contains all of the userflow and their entities such all the flow of Exports, Products, Sales, Payments, Stock, Inventory, Login. All of the below diagrams has been used for the visualization of data processing and structured design of the Export process and working flow.


Zero Level Data flow Diagram(0 Level DFD) of Export Order Tracking System :

This is the Zero Level DFD of Export Order Tracking System, where we have eloborated the high level process of Export. It’s a basic overview of the whole Export Order Tracking System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Stock,Inventory and Login showing the system as a single high-level process, with its relationship to external entities of Exports,Products and Sales. It should be easily understood by a wide audience, including Exports,Sales and Stock In zero leve DFD of Export Order Tracking System, we have described the high level flow of the Export system.

High Level Entities and proccess flow of Export Order Tracking System:

  • Managing all the Exports
  • Managing all the Products
  • Managing all the Sales
  • Managing all the Payments
  • Managing all the Stock
  • Managing all the Inventory
  • Managing all the Login

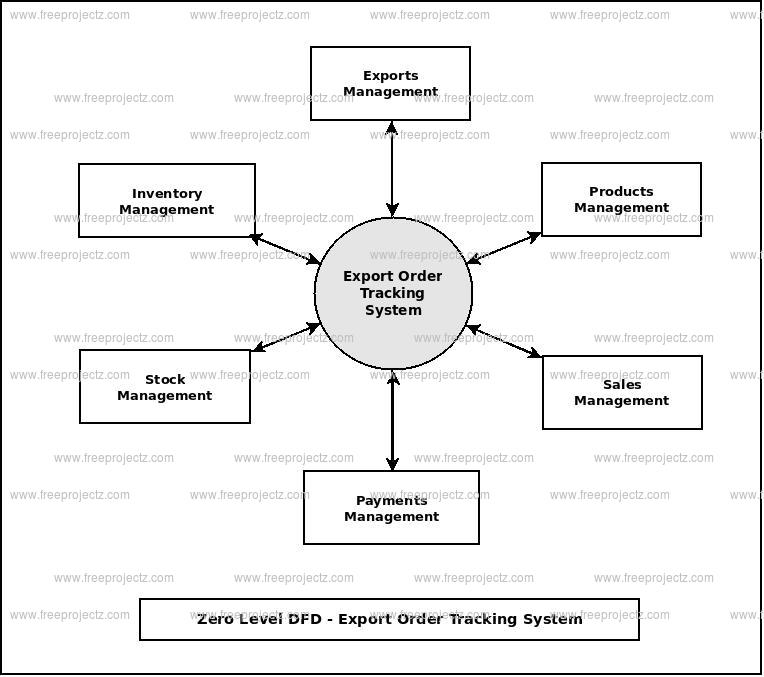

Zero Level Data flow Diagram(0 Level DFD) of Export Order Tracking System

First Level Data flow Diagram(1st Level DFD) of Export Order Tracking System :

First Level DFD (1st Level) of Export Order Tracking System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Export Order Tracking System system as a whole. It also identifies internal data stores of Login, Inventory, Stock, Payments, Sales that must be present in order for the Export system to do its job, and shows the flow of data between the various parts of Exports, Sales, Inventory, Login, Stock of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Export.

Main entities and output of First Level DFD (1st Level DFD):

  • Processing Exports records and generate report of all Exports
  • Processing Products records and generate report of all Products
  • Processing Sales records and generate report of all Sales
  • Processing Payments records and generate report of all Payments
  • Processing Stock records and generate report of all Stock
  • Processing Inventory records and generate report of all Inventory
  • Processing Login records and generate report of all Login

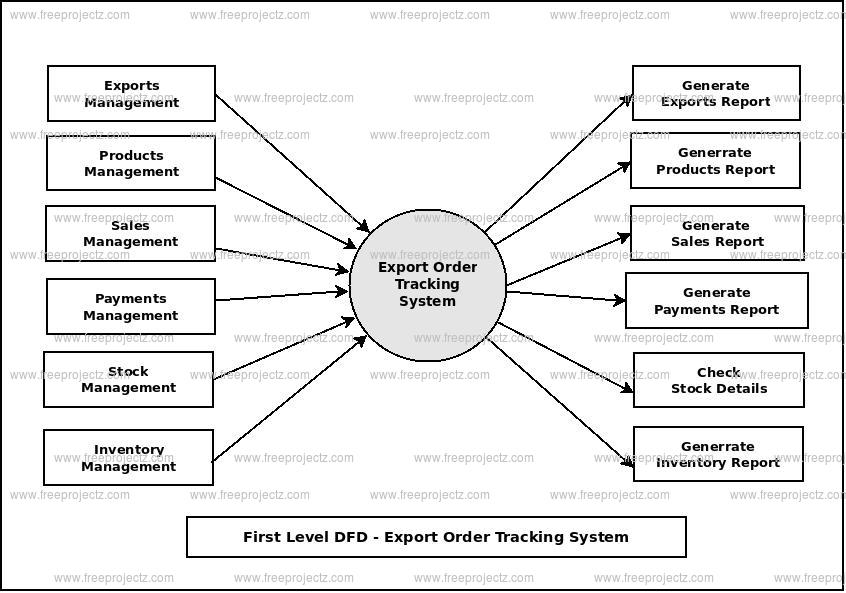

First Level Data flow Diagram(1st Level DFD) of Export Order Tracking System

Second Level Data flow Diagram(2nd Level DFD) of Export Order Tracking System :

DFD Level 2 then goes one step deeper into parts of Level 1 of Export. It may require more functionalities of Export to reach the necessary level of detail about the Export functioning. First Level DFD (1st Level) of Export Order Tracking System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Login, Inventory, Stock, Payments, Sales, Products, Exports.

Low level functionalities of Export Order Tracking System

  • Admin logins to the system and manage all the functionalities of Export Order Tracking System
  • Admin can add, edit, delete and view the records of Exports, Sales, Stock, Login
  • Admin can manage all the details of Products, Payments, Inventory
  • Admin can also generate reports of Exports, Products, Sales, Payments, Stock, Inventory
  • Admin can search the details of Products, Stock, Inventory
  • Admin can apply different level of filters on report of Exports, Payments, Stock
  • Admin can tracks the detailed information of Products, Sales, Payments, , Stock

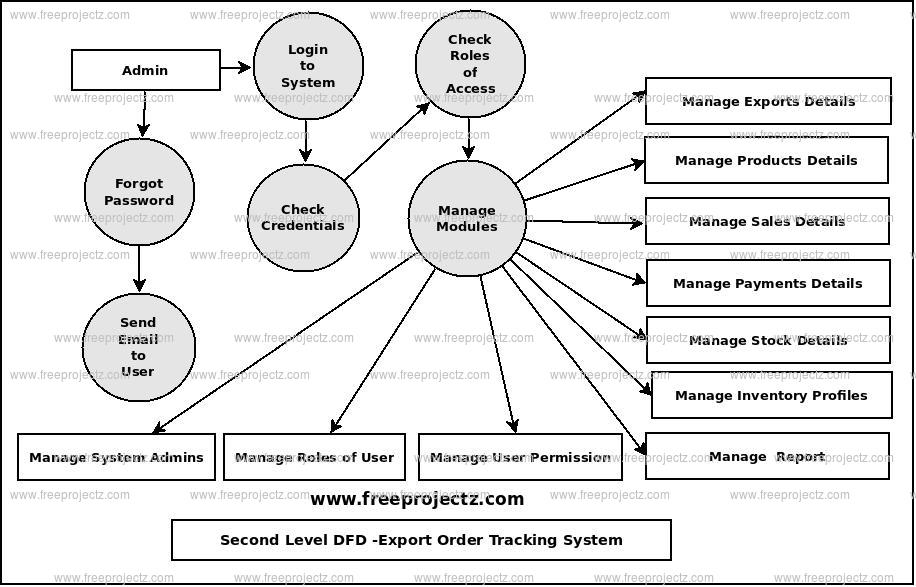

Second Level Data flow Diagram(2nd Level DFD) of Export Order Tracking System

Export Order Tracking System ER Diagram

Posted By freeproject on July 17, 2017

This ER (Entity Relationship) Diagram represents the model of Export Order Tracking System Entity. The entity-relationship diagram of Export Order Tracking System shows all the visual instrument of database tables and the relations between Products, Payments, Exports, Inventory etc. It used structure data and to define the relationships between structured data groups of Export Order Tracking System functionalities. The main entities of the Export Order Tracking System are Exports, Products, Sales, Payments, Stock and Inventory.

Export Order Tracking System entities and their attributes :

  • Exports Entity : Attributes of Exports are export_id, export_name, export_date, export_place, export_type, export_description
  • Products Entity : Attributes of Products are product_id, product_customer_id product_items, product_number, product_type, product_description
  • Sales Entity : Attributes of Sales are sales_id, sales_customer_id, sales_amount, sales_type, sales_description
  • Payments Entity : Attributes of Payments are payment_id, payment_customer_id, payment_date, payment_amount, payment_description
  • Stock Entity : Attributes of Stock are stock_id, stock_items, stock_number, stock_type, stock_description
  • Inventory Entity : Attributes of Inventory are inventory_id, inventory_items, inventory_number, inventory_type, inventory_description

Description of Export Order Tracking System Database :

  • The details of Exports is store into the Exports tables respective with all tables
  • Each entity (Inventory, Sales, Stock, Products, Exports) contains primary key and unique keys.
  • The entity Sales, Stock has binded with Exports, Products entities with foreign key
  • There is one-to-one and one-to-many relationships available between Stock, Payments, Inventory, Exports
  • All the entities Exports, Stock, Sales, Inventory are normalized and reduce duplicacy of records
  • We have implemented indexing on each tables of Export Order Tracking System tables for fast query execution.
Export Order Tracking System ER Diagram

Export Order Tracking System Sequence Diagram

Posted By freeproject on January 31, 2018

This is the UML sequence diagram of Export Order Tracking System which shows the interaction between the objects of Payments, Products, Exports, Stock, Order. The instance of class objects involved in this UML Sequence Diagram of Export Order Tracking System are as follows:

  • Payments Object
  • Products Object
  • Exports Object
  • Stock Object
  • Order Object

This is the UML sequence diagram of Export Order Tracking System which shows the interaction between the objects of Payments, Products, Exports, Stock, Order. The instance of class objects involved in this UML Sequence Diagram of Export Order Tracking System are as follows:

  • Payments Object
  • Products Object
  • Exports Object
  • Stock Object
  • Order Object

Export Order Tracking System Use Case Diagram

Posted By freeproject on July 24, 2017

This Use Case Diagram is a graphic depiction of the interactions among the elements of Export Order Tracking System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Export Order Tracking System. The main actors of Export Order Tracking System in this Use Case Diagram are: Super Admin, System User, Merchant, Buyer, who perform the different type of use cases such as Manage Exports, Manage Products, Manage Sales, Manage Payments, Manage Stock, Manage Inventory, Manage Users and Full Export Order Tracking System Operations. Major elements of the UML use case diagram of Export Order Tracking System are shown on the picture below.

The relationships between and among the actors and the use cases of Export Order Tracking System:

  • Super Admin Entity : Use cases of Super Admin are Manage Exports, Manage Products, Manage Sales, Manage Payments, Manage Stock, Manage Inventory, Manage Users and Full Export Order Tracking System Operations
  • System User Entity : Use cases of System User are Manage Exports, Manage Products, Manage Sales, Manage Payments, Manage Stock, Manage Inventory
  • Merchant Entity : Use cases of Merchant are Upload Products, Manage Products, Eport Request, Make Payment
  • Buyer Entity : Use cases of Buyer are Search Order, Track Orderrs, Request for Products

Use Case Diagram of Export Order Tracking System :

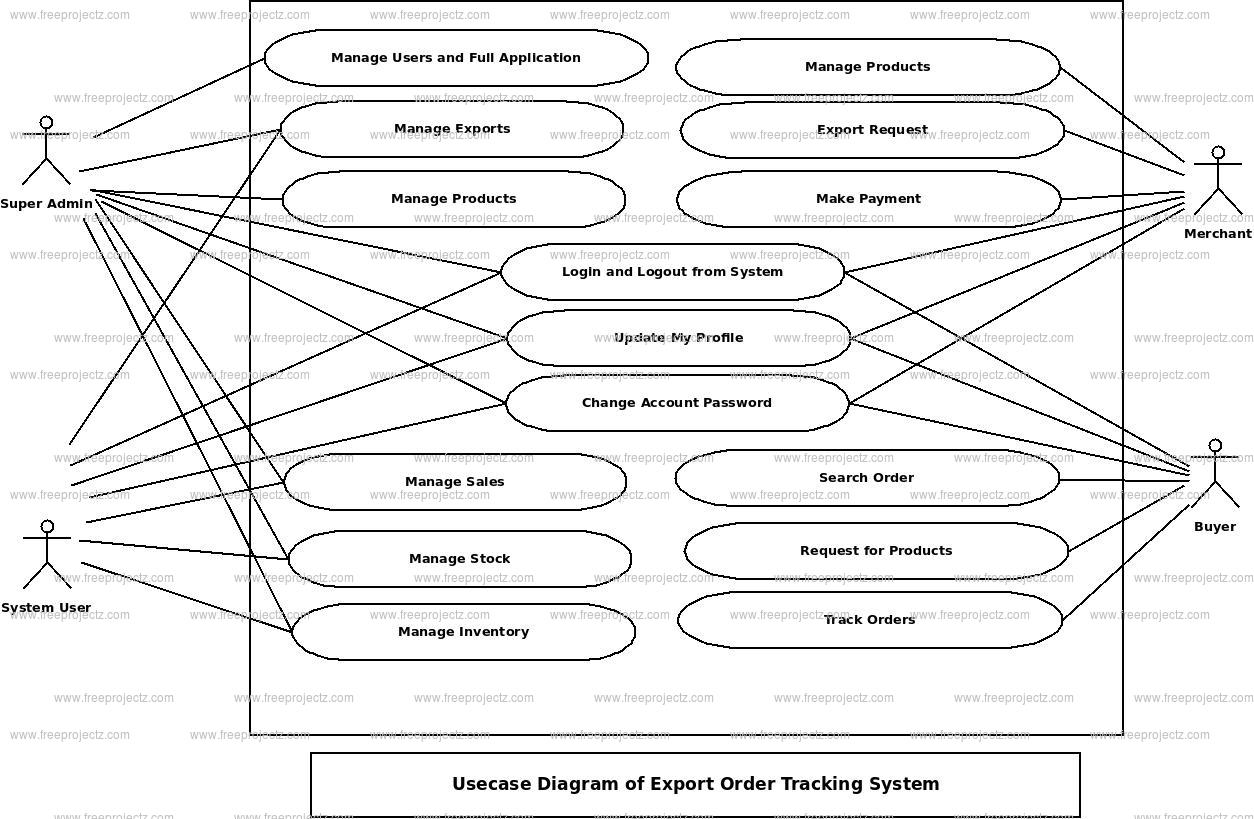

Export Order Tracking System Use Case Diagram
