Result Management System UML Diagram

Posted By freeproject on March 23, 2018

Result Management System Activity Diagram

Posted By freeproject on March 13, 2018

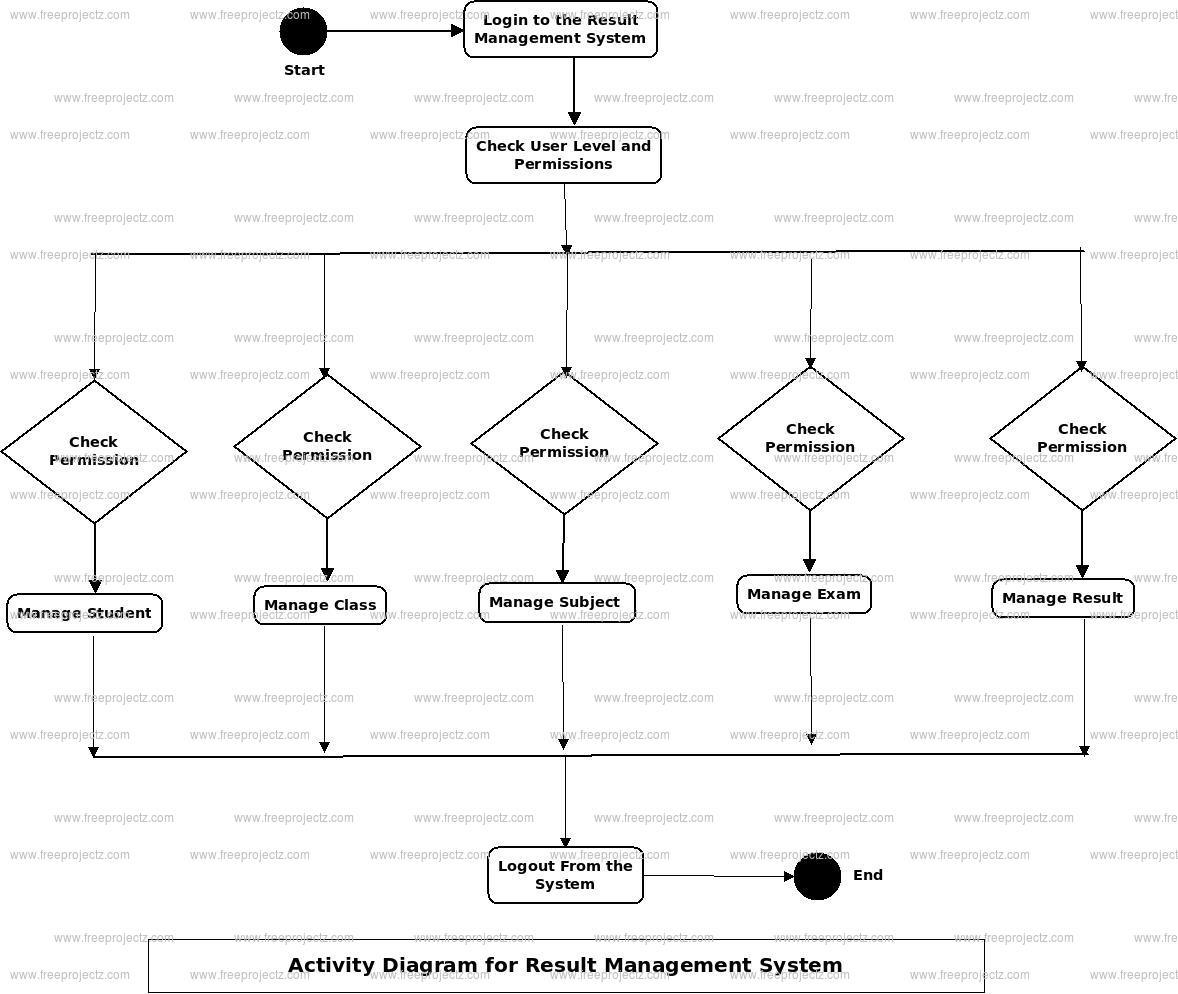

This is the Activity UML diagram of Result Management System which shows the flows between the activity of Subject, Class, Result, Student, Semester. The main activity involved in this UML Activity Diagram of Result Management System are as follows:

  • Subject Activity
  • Class Activity
  • Result Activity
  • Student Activity
  • Semester Activity

Features of the Activity UML diagram of Result Management System

  • Admin User can search Subject, view description of a selected Subject, add Subject, update Subject and delete Subject.
  • Its shows the activity flow of editing, adding and updating of Class
  • User will be able to search and generate report of Result, Student, Semester
  • All objects such as ( Subject, Class, Semester) are interlinked
  • Its shows the full description and flow of Subject, Student, Semester, Result, Class
Result Management System Activity Diagram

Result Management System Class Diagram

Posted By freeproject on August 2, 2017

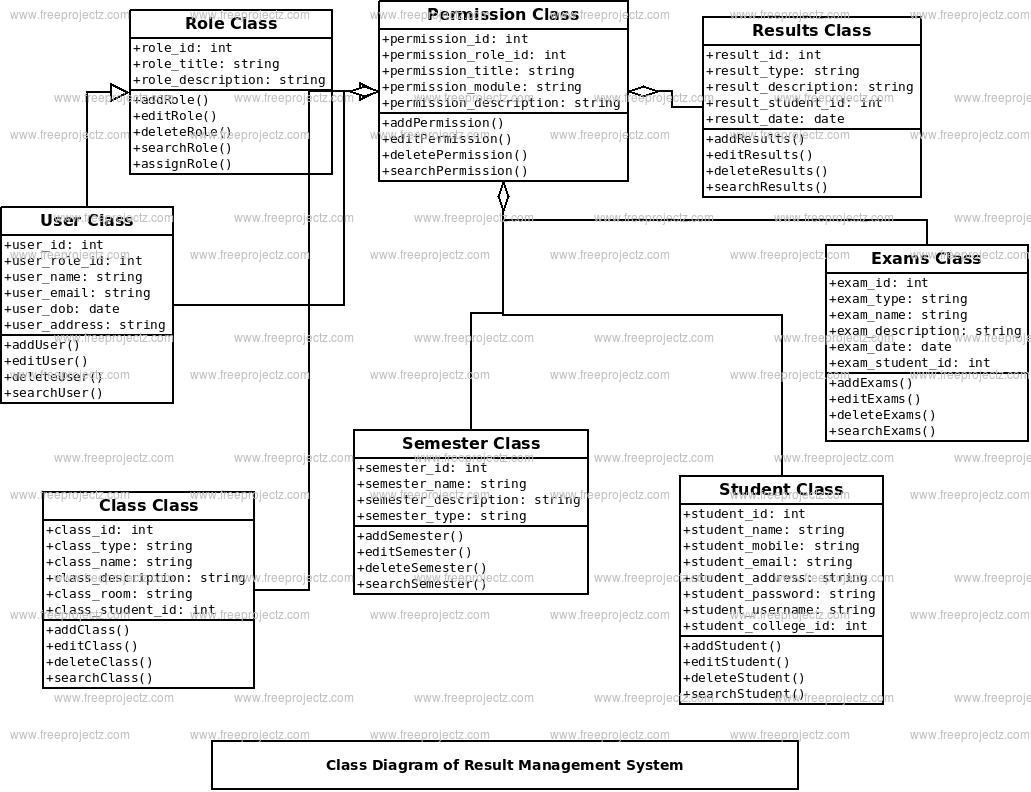

Result Management System Class Diagram describes the structure of a Result Management System classes, their attributes, operations (or methods), and the relationships among objects. The main classes of the Result Management System are Student, Class, Subject, Exam, Result, Teacher.

Classes of Result Management System Class Diagram:

  • Student Class : Manage all the operations of Student
  • Class Class : Manage all the operations of Class
  • Subject Class : Manage all the operations of Subject
  • Exam Class : Manage all the operations of Exam
  • Result Class : Manage all the operations of Result
  • Teacher Class : Manage all the operations of Teacher

Classes and their attributes of Result Management System Class Diagram:

  • Student Attributes : student_id, student_college_id, student_name, student_mobile, student_email, student_username, student_password, student_address
  • Class Attributes : class_id, class_student_id, class_name, class_room, class_type, class_description
  • Subject Attributes : subject_id, subject_course_id, subject_student_id, subject_name, subject_type, subject_description
  • Exam Attributes : exam_id, exam_student_id, exam_roll_number, exam_date exam_name, exam_type, exam_description
  • Result Attributes : result_id, result_student_id, result_name, result_description
  • Teacher Attributes : teacher_id, teacher_college_id, teacher_name, teacher_mobile, teacher_email, teacher_username, teacher_password, teacher_address

Classes and their methods of Result Management System Class Diagram:

  • Student Methods : addStudent(), editStudent(), deleteStudent(), updateStudent(), saveStudent(), searchStudent()
  • Class Methods : addClass(), editClass(), deleteClass(), updateClass(), saveClass(), searchClass()
  • Subject Methods : addSubject(), editSubject(), deleteSubject(), updateSubject(), saveSubject(), searchSubject()
  • Exam Methods : addExam(), editExam(), deleteExam(), updateExam(), saveExam(), searchExam()
  • Result Methods : addResult(), editResult(), deleteResult(), updateResult(), saveResult(), searchResult()
  • Teacher Methods : addTeacher(), editTeacher(), deleteTeacher(), updateTeacher(), saveTeacher(), searchTeacher()

Class Diagram of Result Management System :

Class Diagram Image:
Result Management System Class Diagram

Result Management System Component Diagram

Posted By freeproject on February 8, 2018

This is a Component diagram of Result Management System which shows components, provided and required interfaces, ports, and relationships between the Subject, Student, Class, Teacher and Exam. This type of diagrams is used in Component-Based Development (CBD) to describe systems with Service-Oriented Architecture (SOA). Result Management System UML component diagram, describes the organization and wiring of the physical components in a system.

Components of UML Component Diagram of Result Management System:

  • Subject Component
  • Student Component
  • Class Component
  • Teacher Component
  • Exam Component

Featues of Result Management System Component Diagram:

  • You can show the models the components of Result Management System.
  • Model the database schema of Result Management System
  • Model the executables of an application of Result Management System
  • Model the system's source code of Result Management System
Component Diagram:

Result Management System Dataflow Diagram

Posted By freeproject on April 21, 2017

Result Management System Data flow diagram is often used as a preliminary step to create an overview of the Result Management without going into great detail, which can later be elaborated.it normally consists of overall application dataflow and processes of the Result Management process. It contains all of the userflow and their entities such all the flow of Student, Exam, Class, Subject, Result, Teacher, Semester. All of the below diagrams has been used for the visualization of data processing and structured design of the Result Management process and working flow.


Zero Level Data flow Diagram(0 Level DFD) of Result Management System :

This is the Zero Level DFD of Result Management System, where we have eloborated the high level process of Result Management. It’s a basic overview of the whole Result Management System or process being analyzed or modeled. It’s designed to be an at-a-glance view of Result,Teacher and Semester showing the system as a single high-level process, with its relationship to external entities of Student,Exam and Class. It should be easily understood by a wide audience, including Student,Class and Result In zero leve DFD of Result Management System, we have described the high level flow of the Result Management system.

High Level Entities and proccess flow of Result Management System:

  • Managing all the Student
  • Managing all the Exam
  • Managing all the Class
  • Managing all the Subject
  • Managing all the Result
  • Managing all the Teacher
  • Managing all the Semester
Zero Level DFD Result Management System

First Level Data flow Diagram(1st Level DFD) of Result Management System :

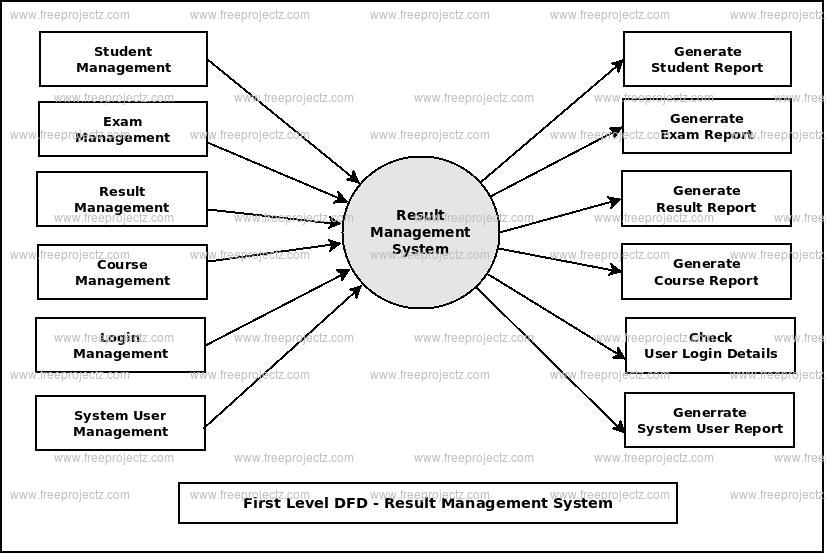

First Level DFD (1st Level) of Result Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Result Management System system as a whole. It also identifies internal data stores of Semester, Teacher, Result, Subject, Class that must be present in order for the Result Management system to do its job, and shows the flow of data between the various parts of Student, Class, Teacher, Semester, Result of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Result Management.

Main entities and output of First Level DFD (1st Level DFD):

  • Processing Student records and generate report of all Student
  • Processing Exam records and generate report of all Exam
  • Processing Class records and generate report of all Class
  • Processing Subject records and generate report of all Subject
  • Processing Result records and generate report of all Result
  • Processing Teacher records and generate report of all Teacher
  • Processing Semester records and generate report of all Semester

First Level Data flow Diagram(1st Level DFD) of Result Management System :

First Level DFD (1st Level) of Result Management System shows how the system is divided into sub-systems (processes), each of which deals with one or more of the data flows to or from an external agent, and which together provide all of the functionality of the Result Management System system as a whole. It also identifies internal data stores of Semester, Teacher, Result, Subject, Class that must be present in order for the Result Management system to do its job, and shows the flow of data between the various parts of Student, Class, Teacher, Semester, Result of the system. DFD Level 1 provides a more detailed breakout of pieces of the 1st level DFD. You will highlight the main functionalities of Result Management.

Main entities and output of First Level DFD (1st Level DFD):

  • Processing Student records and generate report of all Student
  • Processing Exam records and generate report of all Exam
  • Processing Class records and generate report of all Class
  • Processing Subject records and generate report of all Subject
  • Processing Result records and generate report of all Result
  • Processing Teacher records and generate report of all Teacher
  • Processing Semester records and generate report of all Semester
First Level DFD Result Management System

Second Level Data flow Diagram(2nd Level DFD) of Result Management System :

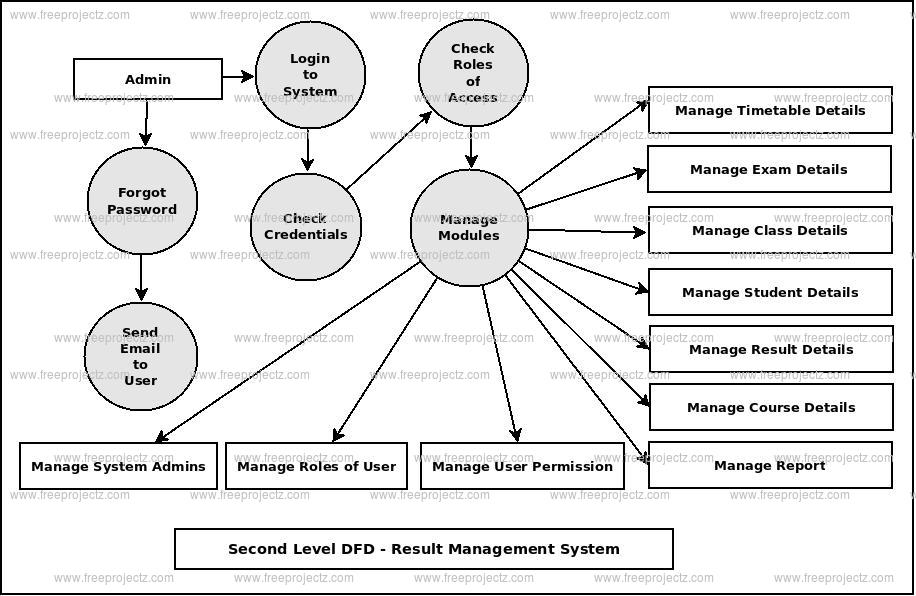

DFD Level 2 then goes one step deeper into parts of Level 1 of Result Management. It may require more functionalities of Result Management to reach the necessary level of detail about the Result Management functioning. First Level DFD (1st Level) of Result Management System shows how the system is divided into sub-systems (processes). The 2nd Level DFD contains more details of Semester, Teacher, Result, Subject, Class, Exam, Student.

Low level functionalities of Result Management System

  • Admin logins to the system and manage all the functionalities of Result Management System
  • Admin can add, edit, delete and view the records of Student, Class, Result, Semester
  • Admin can manage all the details of Exam, Subject, Teacher
  • Admin can also generate reports of Student, Exam, Class, Subject, Result, Teacher
  • Admin can search the details of Exam, Result, Teacher
  • Admin can apply different level of filters on report of Student, Subject, Result
  • Admin can tracks the detailed information of Exam, Class, Subject, , Result
Second Level DFD Result Management System

Result Management System ER Diagram

Posted By freeproject on July 17, 2017

This ER (Entity Relationship) Diagram represents the model of Result Management System Entity. The entity-relationship diagram of Result Management System shows all the visual instrument of database tables and the relations between Class, Exam, Student, Teacher etc. It used structure data and to define the relationships between structured data groups of Result Management System functionalities. The main entities of the Result Management System are Student, Class, Subject, Exam, Result and Teacher.

Result Management System entities and their attributes :

  • Student Entity : Attributes of Student are student_id, student_college_id, student_name, student_mobile, student_email, student_username, student_password, student_address
  • Class Entity : Attributes of Class are class_id, class_student_id, class_name, class_room, class_type, class_description
  • Subject Entity : Attributes of Subject are subject_id, subject_course_id, subject_student_id, subject_name, subject_type, subject_description
  • Exam Entity : Attributes of Exam are exam_id, exam_student_id, exam_roll_number, exam_date exam_name, exam_type, exam_description
  • Result Entity : Attributes of Result are result_id, result_student_id, result_name, result_description
  • Teacher Entity : Attributes of Teacher are teacher_id, teacher_college_id, teacher_name, teacher_mobile, teacher_email, teacher_username, teacher_password, teacher_address

Description of Result Management System Database :

  • The details of Student is store into the Student tables respective with all tables
  • Each entity ( Teacher, Subject, Result, Class, Student) contains primary key and unique keys.
  • The entity Subject, Result has binded with Student, Class entities with foreign key
  • There is one-to-one and one-to-many relationships available between Result, Exam, Teacher, Student
  • All the entities Student, Result, Subject, Teacher are normalized and reduce duplicacy of records
  • We have implemented indexing on each tables of Result Management System tables for fast query execution.
Result Management System ER Diagram

Result Management System Sequence Diagram

Posted By freeproject on January 31, 2018

This is the UML sequence diagram of Result Management System which shows the interaction between the objects of Student, Result, Semester, Exam, Class. The instance of class objects involved in this UML Sequence Diagram of Result Management System are as follows:

  • Student Object
  • Result Object
  • Semester Object
  • Exam Object
  • Class Object

This is the UML sequence diagram of Result Management System which shows the interaction between the objects of Student, Result, Semester, Exam, Class. The instance of class objects involved in this UML Sequence Diagram of Result Management System are as follows:

  • Student Object
  • Result Object
  • Semester Object
  • Exam Object
  • Class Object

Result Management System Use Case Diagram

Posted By freeproject on July 24, 2017

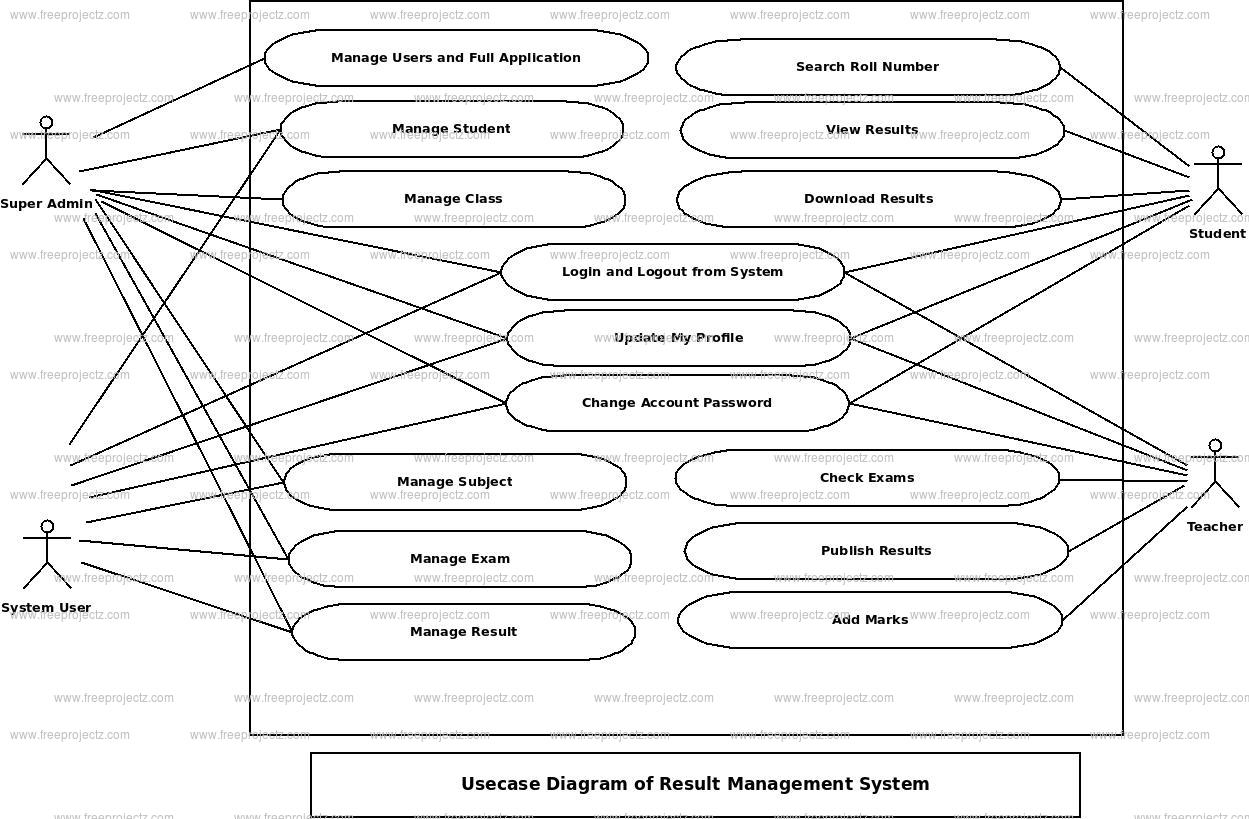

This Use Case Diagram is a graphic depiction of the interactions among the elements of Result Management System. It represents the methodology used in system analysis to identify, clarify, and organize system requirements of Result Management System. The main actors of Result Management System in this Use Case Diagram are: Super Admin, System User, Teacher, Student, who perform the different type of use cases such as Manage Student, Manage Class, Manage Subject, Manage Exam, Manage Result, Manage Teacher, Manage Semester, Manage Users and Full Result Management System Operations. Major elements of the UML use case diagram of Result Management System are shown on the picture below.

The relationships between and among the actors and the use cases of Result Management System:

  • Super Admin Entity : Use cases of Super Admin are Manage Student, Manage Class, Manage Subject, Manage Exam, Manage Result, Manage Teacher, Manage Semester, Manage Users and Full Result Management System Operations
  • System User Entity : Use cases of System User are Manage Student, Manage Class, Manage Subject, Manage Exam, Manage Result, Manage Teacher, Manage Semester
  • Teacher Entity : Use cases of Teacher are Check Exams, Publish Results, Add Marks
  • Student Entity : Use cases of Student are Search Roll No, View Results, Download Results

Use Case Diagram of Result Management System :

Result Management System Use Case Diagram
