Online Crime Investigation ER Diagram

Subscribe our YouTube channel for latest project videos and tutorials Click Here

Posted By freeproject on July 17, 2017

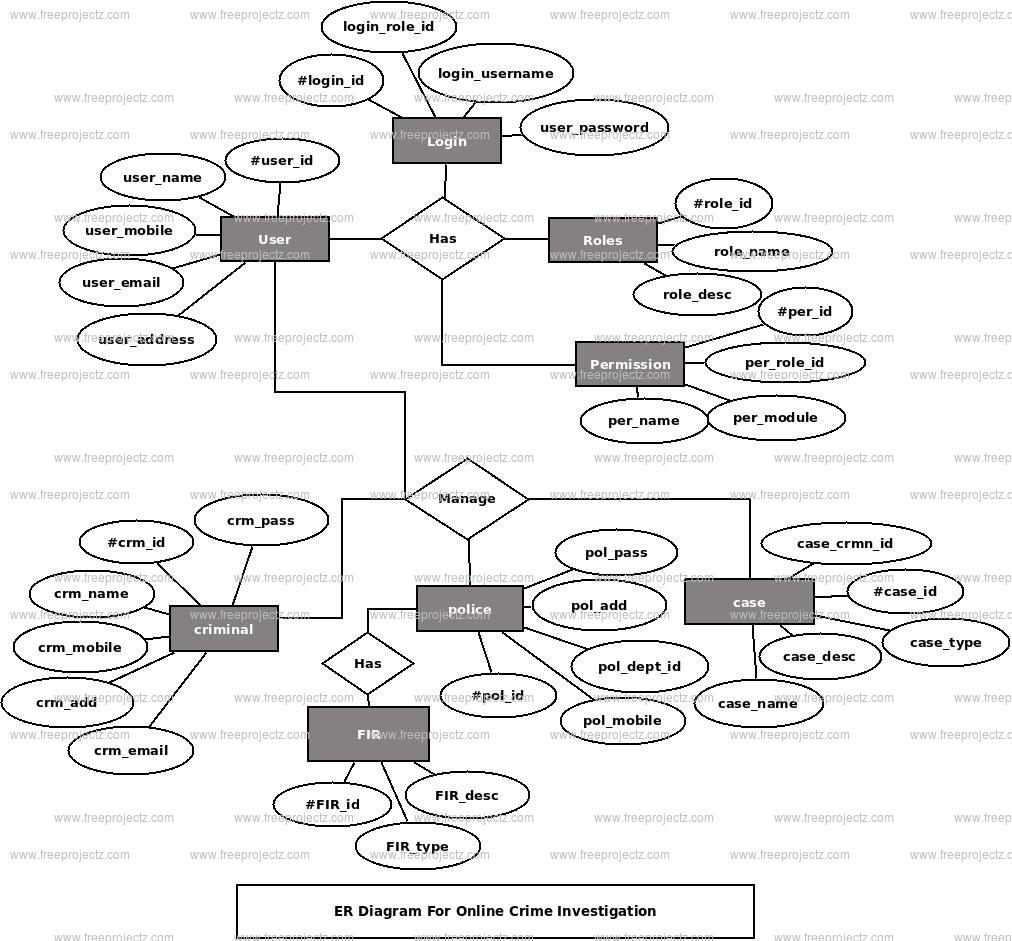

This ER (Entity Relationship) Diagram represents the model of Online Crime Investigation Entity. The entity-relationship diagram of Online Crime Investigation shows all the visual instrument of database tables and the relations between Criminal , Department , Case , FIR etc. It used structure data and to define the relationships between structured data groups of Online Crime Investigation functionalities. The main entities of the Online Crime Investigation are Case , Criminal , Crime , Department , Police and FIR .

Online Crime Investigation entities and their attributes :

  • Case Entity : Attributes of Case are case_id, case_crime_id, case_criminal_id, case_name, case_type, case_description
  • Criminal Entity : Attributes of Criminal are criminal_id, criminal_crime_id, criminal_name, criminal_mobile, criminal_email, criminal_username, criminal_password, criminal_address
  • Crime Entity : Attributes of Crime are crime_id, crime_criminal_id, crime_name, crime_type, crime_description
  • Department Entity : Attributes of Department are department_id, department_name, department_place, department_type, department_description
  • Police Entity : Attributes of Police are police_id, police_department_id, police_name, police_mobile, police_email, police_username, police_password, police_address
  • FIR Entity : Attributes of FIR are FIR_id, FIR_name, FIR_type, FIR_description

Description of Online Crime Investigation Database :

  • The details of Case is store into the Case tables respective with all tables
  • Each entity ( FIR , Crime , Police , Criminal , Case ) contains primary key and unique keys.
  • The entity Crime , Police has binded with Case , Criminal entities with foreign key
  • There is one-to-one and one-to-many relationships available between Police , Department , FIR , Case
  • All the entities Case , Police , Crime , FIR are normalized and reduce duplicacy of records
  • We have implemented indexing on each tables of Online Crime Investigation tables for fast query execution.
